Structural basis of myelin-associated glycoprotein adhesion and signalling.

Pronker MF, Lemstra S, Snijder J, Heck AJ, Thies-Weesie DM, Pasterkamp RJ, Janssen BJ, Nat Commun 7:13584 (2016) Europe PMC

SASDB46 – Glycosylated Myelin-associated glycoprotein immunoglobulin domains 1-3

Myelin-associated glycoprotein Ig domains 1-3
MWI(0) 43 kDa
MWexpected 35 kDa
VPorod 59 nm3
log I(s) 4.30×101 4.30×100 4.30×10-1 4.30×10-2
Myelin-associated glycoprotein Ig domains 1-3 small angle scattering data  s, nm-1
ln I(s)

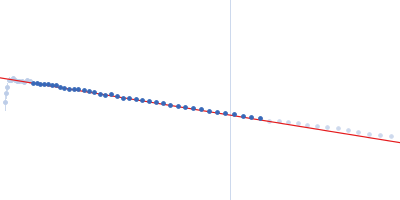

Myelin-associated glycoprotein Ig domains 1-3 Guinier plot ln 4.30×101 Rg: 3.9 nm 0 (3.9 nm)-2 s2
(sRg)2I(s)/I(0)

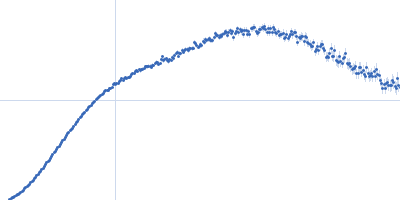

Myelin-associated glycoprotein Ig domains 1-3 Kratky plot 1.104 0 √3 sRg
p(r)

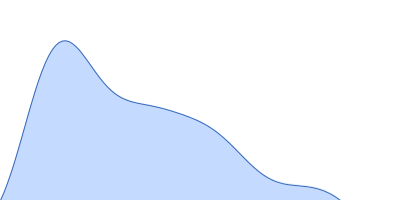

Myelin-associated glycoprotein Ig domains 1-3 pair distance distribution function Rg: 3.9 nm 0 Dmax: 13 nm

Data validation

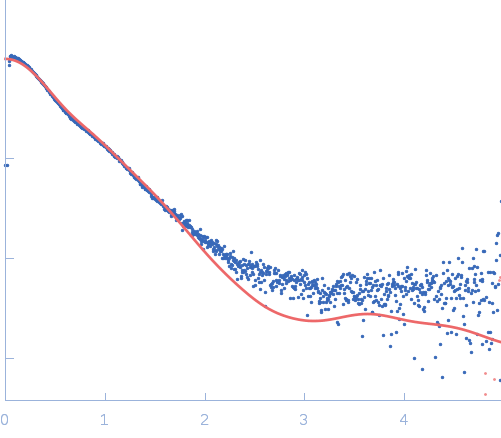

Fits and models

log I(s)
 s, nm-1
Myelin-associated glycoprotein Ig domains 1-3 PDB (PROTEIN DATA BANK) model
Synchrotron SAXS data from solutions of glycosylated myelin-associated glycoprotein (Ig domains 1-3) in HEPES, pH 7.5 were collected on the BM29 camera on the storage ring ESRF (Grenoble, France) using a Pilatus 1M detector at a sample-detector distance of 2.9 m and at a wavelength of λ = 0.1 nm (I(s) vs s, where s = 4π sin θ/λ and 2θ is the scattering angle). One solute concentration of 1.74 mg/ml was measured at 20°C. 10 successive 2 second frames were collected. The data were normalized to the intensity of the transmitted beam and radially averaged; the scattering of the solvent-blank was subtracted and the different curves were scaled for protein concentration.

Myelin-associated glycoprotein (MAG) immunoglobulin domains 1-3 that should, based on the crystal structure, be monomeric.

Myelin-associated glycoprotein Ig domains 1-3 (MAG)
Mol. type   Protein
Organism   Mus musculus
Olig. state   Monomer
Mon. MW   35.0 kDa

UniProt   P20917 (20-325)
Sequence   FASTA

PDB ID   5LFR
