| MWexperimental | 185 | kDa |
| MWexpected | 56 | kDa |
| VPorod | 260 | nm3 |
|
log I(s)
4.77×101
4.77×100
4.77×10-1
4.77×10-2
|
s, nm-1
|
Structural Analysis of Pathogenic Mutations Targeting Glu427 of ALDH7A1, the Hot Spot Residue of Pyridoxine-Dependent Epilepsy.
Laciak AR, Korasick DA, Gates KS, Tanner JJ, J Inherit Metab Dis (2019) Europe PMCSASDGQ4 – Human alpha-aminoadipic semialdehyde dehydrogenase (ALDH)7A1 E399D at 2.9 mg/mL
Alpha-aminoadipic semialdehyde dehydrogenase|
|
|

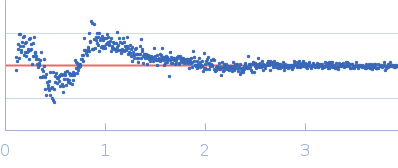

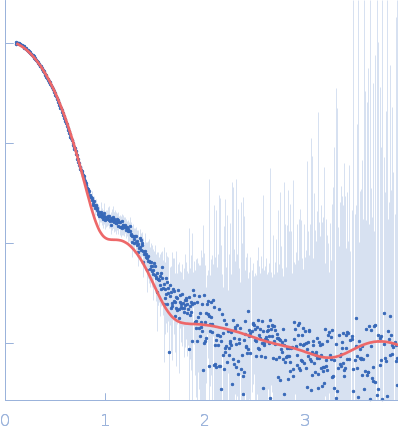

Fits and models
|
|
|
Synchrotron SAXS
data from solutions of
Human alpha-aminoadipic semialdehyde dehydrogenase (ALDH)7A1 E399D at 2.9 mg/mL
in
50 mM HEPES, 100 mM NaCl, 1 mM DTT, 10 mM NAD, 2% (v/v) glycerol, pH 8
were collected
on the
12.3.1 (SIBYLS) beam line
at the Advanced Light Source (ALS) storage ring
(Berkeley, CA, USA)
using a Pilatus3 X 2M detector
at a sample-detector distance of 2 m and
at a wavelength of λ = 0.127 nm
(I(s) vs s, where s = 4πsinθ/λ, and 2θ is the scattering angle).
One solute concentration of 2.90 mg/ml was measured
at 10°C.
The data were normalized to the intensity of the transmitted beam and radially averaged; the scattering of the solvent-blank was subtracted.
X-ray Exposure time = UNKNOWN. Number of frames = UNKNOWN |
|
|||||||||||||||||||||||||||||||||||||||
