| MWexperimental | 30 | kDa |
| MWexpected | 33 | kDa |
| VPorod | 31 | nm3 |
|
log I(s)
2.07×102
2.07×101
2.07×100
2.07×10-1
|
s, nm-1
|
Characterization of a fluorophore binding RNA aptamer by fluorescence correlation spectroscopy and small angle X-ray scattering.
Werner A, Konarev PV, Svergun DI, Hahn U, Anal Biochem 389(1):52-62 (2009) Europe PMCSASDA74 – RNA Aptamer
SRB2m|
|
|

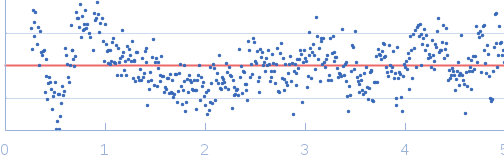

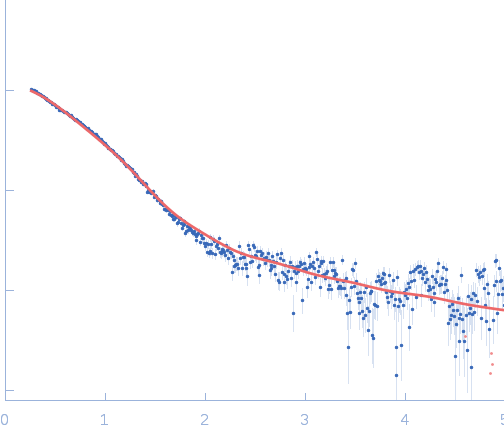

Fits and models
|
|
|
Synchrotron SAXS
data from solutions of
RNA Aptamer
in
Hepes, pH 7.4
were collected
on the
EMBL X33 beam line
at the DORIS III, DESY storage ring
(Hamburg, Germany)
using a MAR 345 Image Plate detector
(I(s) vs s, where s = 4πsinθ/λ, and 2θ is the scattering angle).
One solute concentration of 0.50 mg/ml was measured
at 15°C.
Two successive
120 second frames were collected.
The data were normalized to the intensity of the transmitted beam and radially averaged; the scattering of the solvent-blank was subtracted.
Wavelength = UNKNOWN. Sample detector distance = UNKNOWN
