| MWI(0) | 32 | kDa |
| MWexpected | 30 | kDa |
| VPorod | 49 | nm3 |
|
log I(s)
3.20×101
3.20×100
3.20×10-1
3.20×10-2
|
s, nm-1
|
Highly selective tungstate transporter protein TupA from Desulfovibrio alaskensis G20.
Otrelo-Cardoso AR, Nair RR, Correia MAS, Cordeiro RSC, Panjkovich A, Svergun DI, Santos-Silva T, Rivas MG, Sci Rep 7(1):5798 (2017) Europe PMCSASDBE9 – ABC transporter periplasmic substrate-binding protein TupA measured in the absence of metal ligand (tungstate or molybdate)
ABC transporter periplasmic substrate-binding protein|
|
|
Fits and models
|
|
|
Synchrotron SAXS data from solutions of TupA measured in the absence of metal ligand (tungstate or molybdate) in 5 mM Tris-HCl, pH 7.6 were collected on the BM29 beam line at the ESRF storage ring (Grenoble, France) using a Pilatus 1M detector at a sample-detector distance of 2.9 m and at a wavelength of λ = 0.099 nm (I(s) vs s, where s = 4πsinθ/λ and 2θ is the scattering angle). Solute concentrations ranging between 0.8 and 6 mg/ml were measured at 4.9°C. 10 successive 1 second frames were collected. The data were normalized to the intensity of the transmitted beam and radially averaged; the scattering of the solvent-blank was subtracted and the different curves were scaled for protein concentration. The low angle data collected at lower concentration were merged with the highest concentration high angle data to yield the final composite scattering curve.

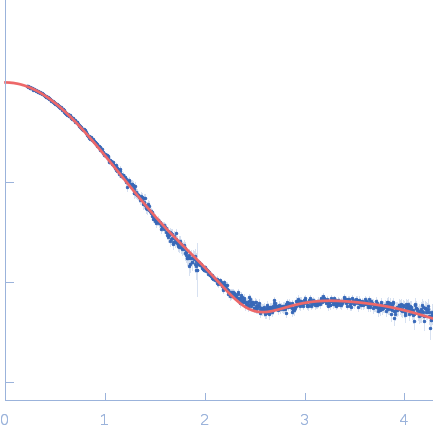

TupA measured in the absence of metal ligand, fitted against the apo-form model. |
|
|||||||||||||||||||||||||||||||||
