SAXS Structural Studies of Dps from Deinococcus radiodurans Highlights the Conformation of the Mobile N-Terminal Extensions.

Santos SP, Cuypers MG, Round A, Finet S, Narayanan T, Mitchell EP, Romão CV, J Mol Biol 429(5):667-687 (2017) Europe PMC

SASDBG7 – Dps1, DNA binding protein under starvation conditions (SEC-SAXS)

DNA protection during starvation protein 1
MWexperimental 257 kDa
MWexpected 276 kDa
VPorod 437 nm3
log I(s) 5.07×101 5.07×100 5.07×10-1 5.07×10-2
DNA protection during starvation protein 1 small angle scattering data  s, nm-1
ln I(s)
DNA protection during starvation protein 1 Guinier plot ln 5.08×101 Rg: 4.2 nm 0 (4.2 nm)-2 s2
(sRg)2I(s)/I(0)
DNA protection during starvation protein 1 Kratky plot 1.104 0 3 sRg
p(r)
DNA protection during starvation protein 1 pair distance distribution function Rg: 4.1 nm 0 Dmax: 12.8 nm

Data validation

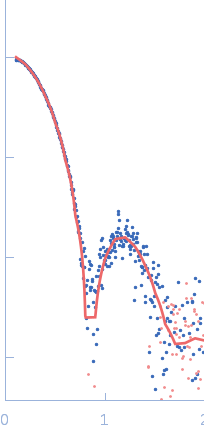

Fits and models


log I(s)
 s, nm-1
DNA protection during starvation protein 1 GASBOR model

log I(s)
 s, nm-1
DNA protection during starvation protein 1 EOM/RANCH model

Synchrotron SAXS data, I(s) vs s (s = 4π sin θ/λ, where 2θ is the scattering angle) were collected from a sample of Dps1, (DNA binding protein under starvation conditions) using continuous-flow size-exclusion chromatography SAXS (SEC-SAXS) at the BM29 beam line on the ESRF storage ring (Grenoble, France). Data (1500 successive 1 second frames), were collected using a Pilatus 1M detector at a sample-detector distance of 2.8 m and at a wavelength of λ = 0.09919 nm. The SEC mobile phase consisted of 20 mM Tris-HCl, 150 mM NaCl, pH 7.5, (20°C) with a sample injection concentration of 10 mg/ml. Data obtained from solute-free eluates and SEC-elution peak were normalized to the intensity of the transmitted beam and radially averaged; the scattering of the solvent-blank was subtracted from the SEC-peak frames to produce the data displayed in this entry.

SEC column = UNKNOWN. Sample injection volume = UNKNOWN. Flow rate = UNKNOWN

DNA protection during starvation protein 1 (Dps1)
Mol. type   Protein
Organism   Deinococcus radiodurans R1
Olig. state   Dodecamer
Mon. MW   23.0 kDa

UniProt   Q9RS64 (1-207)
Sequence   FASTA
