Biophysical investigation of type A PutAs reveals a conserved core oligomeric structure.

Korasick DA, Singh H, Pemberton TA, Luo M, Dhatwalia R, Tanner JJ, FEBS J 284(18):3029-3049 (2017) Europe PMC

SASDCR3 – Proline utilization A from Legionella pneumophila 3 mg/mL

Bifunctional protein PutA
MWexperimental 230 kDa
MWexpected 238 kDa
VPorod 291 nm3
log I(s) 4.70×102 4.70×101 4.70×100 4.70×10-1
Bifunctional protein PutA small angle scattering data  s, nm-1
ln I(s)

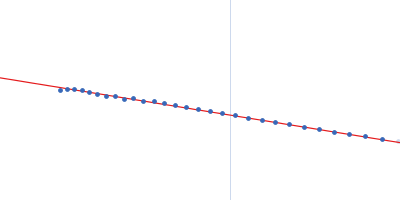

Bifunctional protein PutA Guinier plot ln 4.71×102 Rg: 4.6 nm 0 (4.6 nm)-2 s2
(sRg)2I(s)/I(0)
Bifunctional protein PutA Kratky plot 1.104 0 √3 sRg
p(r)

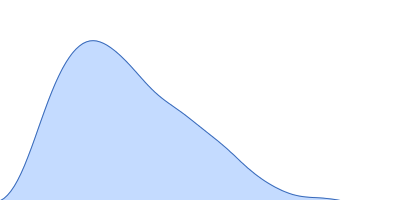

Bifunctional protein PutA pair distance distribution function Rg: 4.7 nm 0 Dmax: 16 nm

Data validation

There are no models related to this curve.

Synchrotron SAXS data from solutions of Proline utilization A from Legionella pneumophila in 50 mM Tris-HCl, 50 mM NaCl, 0.5 mM EDTA, and 0.5 mM THP at pH 7.5 were collected on the 12.3.1 (SIBYLS) beam line at the Advanced Light Source (ALS; Berkeley, CA, USA) using a MAR 165 CCD detector (I(s) vs s, where s = 4πsinθ/λ and 2θ is the scattering angle). One solute concentration of 3 mg/ml was measured. The data were normalized to the intensity of the transmitted beam and radially averaged. The radially averaged scattering of the solvent-blank was subtracted. X-ray wavelength, unknown; Exposure time, unknown; Sample-To-Detector distance, unknown.

Wavelength = UNKNOWN. Cell temperature = UNKNOWN. Storage temperature = UNKNOWN. Sample detector distance = UNKNOWN. X-ray Exposure time = UNKNOWN. Number of frames = UNKNOWN

Bifunctional protein PutA (LpPutA)
Mol. type   Protein
Organism   Legionella pneumophila subsp. pneumophila
Olig. state   Dimer
Mon. MW   119.2 kDa

UniProt   Q5ZUU6
Sequence   FASTA
