Architectural Features of Human Mitochondrial Cysteine Desulfurase Complexes from Crosslinking Mass Spectrometry and Small-Angle X-Ray Scattering.

Cai K, Frederick RO, Dashti H, Markley JL, Structure 26(8):1127-1136.e4 (2018) Europe PMC

SASDDC3 – Human mitochondrial cysteine desulfurase-ISCU (NFS1, ISD11, Acp and ISCU heterodimer complex)

Cysteine desulfurase, mitochondrial
LYR motif-containing protein 4
Acyl carrier protein
Iron-sulfur cluster assembly enzyme ISCU, mitochondrial
MWexperimental 160 kDa
MWexpected 164 kDa
VPorod 218 nm3
log I(s) 6.22×103 6.22×102 6.22×101 6.22×100
Cysteine desulfurase, mitochondrial LYR motif-containing protein 4 Acyl carrier protein Iron-sulfur cluster assembly enzyme ISCU, mitochondrial small angle scattering data  s, nm-1

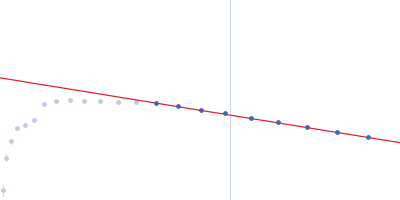

ln I(s)
Cysteine desulfurase, mitochondrial LYR motif-containing protein 4 Acyl carrier protein Iron-sulfur cluster assembly enzyme ISCU, mitochondrial Guinier plot ln 6.22×103 Rg: 3.9 nm 0 (3.9 nm)-2 s2

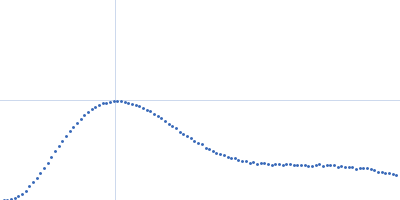

(sRg)2I(s)/I(0)
Cysteine desulfurase, mitochondrial LYR motif-containing protein 4 Acyl carrier protein Iron-sulfur cluster assembly enzyme ISCU, mitochondrial Kratky plot 1.104 0 3 sRg

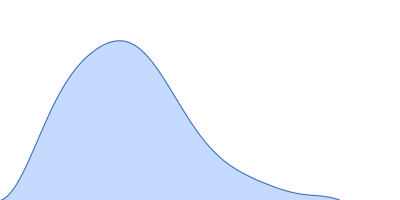

p(r)
Cysteine desulfurase, mitochondrial LYR motif-containing protein 4 Acyl carrier protein Iron-sulfur cluster assembly enzyme ISCU, mitochondrial pair distance distribution function Rg: 4.0 nm 0 Dmax: 13.7 nm

Data validation


Fits and models

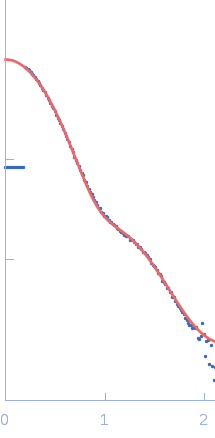

log I(s)
 s, nm-1
Cysteine desulfurase, mitochondrial LYR motif-containing protein 4 Acyl carrier protein Iron-sulfur cluster assembly enzyme ISCU, mitochondrial PDB (PROTEIN DATA BANK) model

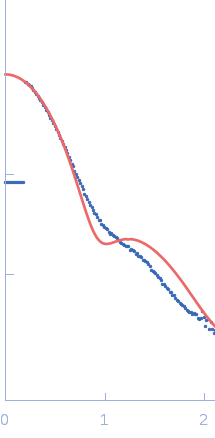

log I(s)
 s, nm-1
Cysteine desulfurase, mitochondrial LYR motif-containing protein 4 Acyl carrier protein Iron-sulfur cluster assembly enzyme ISCU, mitochondrial PYMOL model

SAXS data from solutions of human mitochondrial cysteine desulfurase-ISCU (NFS1, ISD11, Acp and ISCU heterodimer complex) in 20 mM HEPES, 150 mM NaCl, 5 mM TCEP, pH 7.5 were collected on a Bruker Nanostar instrument (Madison, WI, USA) using a MikroGap Vantec-2000 detector at a sample-detector distance of 1 m and at a wavelength of λ = 0.15418 nm (l(s) vs s, where s = 4πsinθ/λ, and 2θ is the scattering angle). Solute concentrations ranging between 2 and 10 mg/ml were measured at 25°C. Four successive 3600 second frames were collected. The data were normalized to the intensity of the transmitted beam and radially averaged; the scattering of the solvent-blank was subtracted.

The solution SAXS study of cysteine desulfurase complex containing the scaffold protein ISCU

Cysteine desulfurase, mitochondrial (NFS1)
Mol. type   Protein
Organism   Homo sapiens
Olig. state   Dimer
Mon. MW   44.9 kDa

UniProt   Q9Y697 (53-457)
Sequence   FASTA

LYR motif-containing protein 4 (ISD11)
Mol. type   Protein
Organism   Homo sapiens
Olig. state   Dimer
Mon. MW   11.6 kDa

UniProt   Q9HD34
Sequence   FASTA

Acyl carrier protein
Mol. type   Protein
Organism   Escherichia coli
Olig. state   Dimer
Mon. MW   11.5 kDa

UniProt   P0A6A8
Sequence   FASTA

Iron-sulfur cluster assembly enzyme ISCU, mitochondrial (ISCU)
Mol. type   Protein
Organism   Homo sapiens
Olig. state   Dimer
Mon. MW   14.7 kDa

UniProt   Q9H1K1 (33-167)
Sequence   FASTA

PDB ID   5WLW

PDB ID   5USR
