OCP-FRP protein complex topologies suggest a mechanism for controlling high light tolerance in cyanobacteria.

Sluchanko NN, Slonimskiy YB, Shirshin EA, Moldenhauer M, Friedrich T, Maksimov EG, Nat Commun 9(1):3869 (2018) Europe PMC

SASDDF9 – Synechocystis orange carotenoid-binding protein devoid of the NTE (OCP-ΔNTE, orange form)

Orange carotenoid-binding protein
MWexperimental 36 kDa
MWexpected 34 kDa
VPorod 57 nm3
log I(s) 3.30×10-2 3.30×10-3 3.30×10-4 3.30×10-5
Orange carotenoid-binding protein small angle scattering data  s, nm-1
ln I(s)

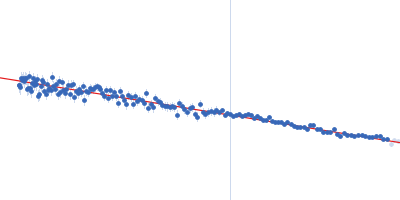

Orange carotenoid-binding protein Guinier plot ln 3.30×10-2 Rg: 2.2 nm 0 (2.2 nm)-2 s2
(sRg)2I(s)/I(0)

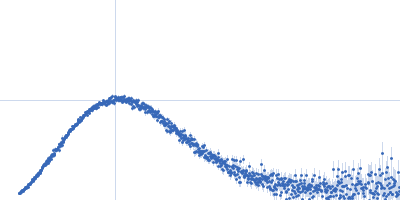

Orange carotenoid-binding protein Kratky plot 1.104 0 √3 sRg
p(r)

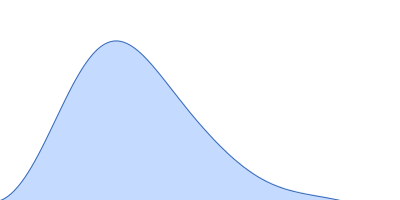

Orange carotenoid-binding protein pair distance distribution function Rg: 2.3 nm 0 Dmax: 7.4 nm

Data validation

Fits and models

log I(s)
 s, nm-1

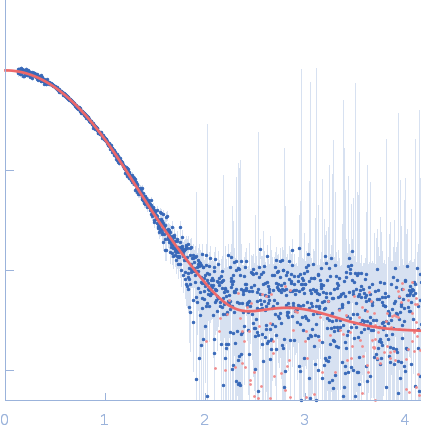

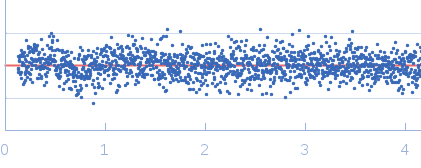

Orange carotenoid-binding protein CORAL model
Synchrotron SAXS data from solutions of Synechocystis OCP-ΔNTE (orange form) in 20 mM Tris-HCl, 150 mM NaCl, 0.1 mM EDTA, 3 % v/v glycerol, pH 7.6 were collected at the EMBL-P12 bioSAXS beam line at the PETRA III storage ring (Hamburg, Germany) using a Pilatus 2M detector at a wavelength of λ = 0.124 nm (I(s) vs s, where s = 4πsinθ/λ and 2θ is the scattering angle). One solute concentration of 1.75 mg/ml was measured at 10°C. 20 successive 0.050 second frames were collected. The data were normalized to the intensity of the transmitted beam and radially averaged; the scattering of the solvent-blank was subtracted and the data scaled for protein concentration.

Sample detector distance = UNKNOWN

Orange carotenoid-binding protein (OCP)
Mol. type   Protein
Organism   Synechocystis sp. PCC 6803
Olig. state   Monomer
Mon. MW   34.3 kDa

UniProt   P74102
Sequence   FASTA
