FusC, a member of the M16 protease family acquired by bacteria for iron piracy against plants.

Grinter R, Hay ID, Song J, Wang J, Teng D, Dhanesakaran V, Wilksch JJ, Davies MR, Littler D, Beckham SA, Henderson IR, Strugnell RA, Dougan G, Lithgow T, PLoS Biol 16(8):e2006026 (2018) Europe PMC

SASDDT6 – The ferredoxin protease, FusC, E83A mutant with Arabidopsis ferredoxin (co-SEC-SAXS)

Ferredoxin protease E83A mutant
Arabidopsis ferredoxin 2
MWexperimental 100 kDa
MWexpected 113 kDa
VPorod 161 nm3
log I(s) 1.27×10-1 1.27×10-2 1.27×10-3 1.27×10-4
Ferredoxin protease E83A mutant Arabidopsis ferredoxin 2 small angle scattering data  s, nm-1
ln I(s)
Ferredoxin protease E83A mutant Arabidopsis ferredoxin 2 Guinier plot ln 1.28×10-1 Rg: 3.6 nm 0 (3.6 nm)-2 s2
(sRg)2I(s)/I(0)
Ferredoxin protease E83A mutant Arabidopsis ferredoxin 2 Kratky plot 1.104 0 3 sRg
p(r)

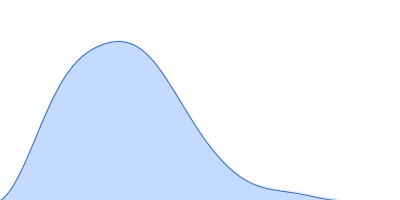

Ferredoxin protease E83A mutant Arabidopsis ferredoxin 2 pair distance distribution function Rg: 3.7 nm 0 Dmax: 12.7 nm

Data validation


There are no models related to this curve.

Synchrotron SAXS data, I(s) vs s (s = 4π sin θ/λ, where 2θ is the scattering angle) were collected from a sample of mutant ferredoxin protease, FusC E83A, with Arabidopsis ferredoxin using continuous-flow size-exclusion chromatography SAXS (SEC-SAXS) at the SAXS/WAXS beam line at the Australian Synchrotron (Melbourne, Australia). Data were collected a using a Pilatus 1M detector at a sample-detector distance of 2.7 m and at a wavelength of λ = 0.103 nm. The SEC mobile phase consisted of 20 mM Tris, 150 mM NaCl, 0.02 % NaN3, 5.0 % v/v glycerol, pH 7.8, (20°C). The SAXS data data measured from the SEC-elution (sample peak and buffer) were normalized to the intensity of the transmitted beam and radially averaged. The data from the sample SEC-peak were scaled and averaged and the scattering of the solvent-blank was subtracted from the sample frames to produce the data displayed in this entry.

The ferredoxin protease FusC E83 mutant (at 10 mg/ml) was pre-incubated with an excess of Arabidopsis ferredoxin 2 (3 mg/ml) prior to SEC-SAXS. SEC-SAXS was performed using the following parameters: Column type: GE Healthcare Superdex S200 10/300; Flow rate: 0.4 ml/min; Injection volume: 100 µl.

Ferredoxin protease E83A mutant (FusC E83A)
Mol. type   Protein
Organism   Pectobacterium atrosepticum SCRI1043
Olig. state   Monomer
Mon. MW   101.2 kDa

UniProt   Q6D8U3 (26-924)
Sequence   FASTA

Arabidopsis ferredoxin 2 (Ara_Fer2)
Mol. type   Protein
Organism   Arabidopsis thaliana
Olig. state   Monomer
Mon. MW   11.3 kDa

UniProt   P16972 (53-145)
Sequence   FASTA
