Structural basis for activation of plasma-membrane Ca2+-ATPase by calmodulin.

Nitsche J, Josts I, Heidemann J, Mertens HD, Maric S, Moulin M, Haertlein M, Busch S, Forsyth VT, Svergun DI, Uetrecht C, Tidow H, Commun Biol 1:206 (2018) Europe PMC

SASDEU4 – ACA8 complex with Calmodulin (hydrogenated) in stealth nanodisc (SANS, 100% D2O)

Membrane scaffold protein 1D1 (deuterated, 75%)
1-palmitoyl-2-palmitoleoyl-sn-glycero-3-phosphocholine (deuteration: 78% head, 92% acyl)
Calcium-transporting ATPase 8, plasma membrane-type
Calmodulin-7
MWexperimental 186 kDa
MWexpected 168 kDa
VPorod 297 nm3
log I(s) 1.50×10-1 1.50×10-2 1.50×10-3 1.50×10-4
Membrane scaffold protein 1D1 (deuterated, 75%) 1-palmitoyl-2-palmitoleoyl-sn-glycero-3-phosphocholine (deuteration: 78% head, 92% acyl) Calcium-transporting ATPase 8, plasma membrane-type Calmodulin-7 small angle scattering data  s, nm-1
ln I(s)
Membrane scaffold protein 1D1 (deuterated, 75%) 1-palmitoyl-2-palmitoleoyl-sn-glycero-3-phosphocholine (deuteration: 78% head, 92% acyl) Calcium-transporting ATPase 8, plasma membrane-type Calmodulin-7 Guinier plot ln 1.50×10-1 Rg: 4.8 nm 0 (4.8 nm)-2 s2
(sRg)2I(s)/I(0)
Membrane scaffold protein 1D1 (deuterated, 75%) 1-palmitoyl-2-palmitoleoyl-sn-glycero-3-phosphocholine (deuteration: 78% head, 92% acyl) Calcium-transporting ATPase 8, plasma membrane-type Calmodulin-7 Kratky plot 1.104 0 3 sRg

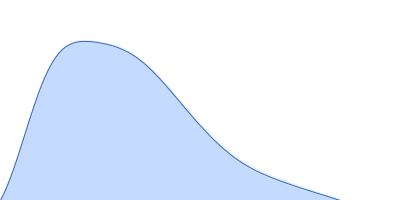

p(r)
Membrane scaffold protein 1D1 (deuterated, 75%) 1-palmitoyl-2-palmitoleoyl-sn-glycero-3-phosphocholine (deuteration: 78% head, 92% acyl) Calcium-transporting ATPase 8, plasma membrane-type Calmodulin-7 pair distance distribution function Rg: 5.3 nm 0 Dmax: 18 nm

Data validation


There are no models related to this curve.

SANS data from solutions of ACA8 complex with Calmodulin (hydrogenated) in stealth nanodisc (SANS, 100% D2O) in 30 mM Tris, 150 mM NaCl, 1mM MgCl2, 1 mM CaCl2, pH 7.5 were collected using a MLZ detector at a sample-detector distance of 5.5 m and at a wavelength of λ = 5 nm (I(s) vs s, where s = 4πsinθ/λ, and 2θ is the scattering angle). One solute concentration of 3.00 mg/ml was measured at 10°C. One 7200 second frame was collected. The data were normalized to the intensity of the transmitted beam and radially averaged; the scattering of the solvent-blank was subtracted.

ACA8 protein complex with Calmodulin encapsulated in a partially deuterated "stealth-nanodisc": (sND). Disc components (MSP1D1 scaffold protein - 75% deuterated, and POPC lipid - heads/tails 78% and 92% deuterated) are effectively matched out at 100% D2O. Thus the expected molecular weight should correspond to that of the ACA8:Calmodulin complex (~150 kDa). Data measured using a single instrument configuration: 5.5 m (sample-detector distances) with a fixed neutron wavelength (λ) of 5 Å.

Membrane scaffold protein 1D1 (deuterated, 75%) (d75-msp1d1)
Mol. type   Protein
Olig. state   Dimer
Mon. MW   24.7 kDa
Sequence   FASTA

1-palmitoyl-2-palmitoleoyl-sn-glycero-3-phosphocholine (deuteration: 78% head, 92% acyl) (d(78,92)-POPC)
Mol. type   Other
Organism   Escherichia coli
Olig. state   Unknown
Mon. MW   0.8 kDa
Chemical formula

Calcium-transporting ATPase 8, plasma membrane-type (ACA8)
Mol. type   Protein
Organism   Arabidopsis thaliana
Olig. state   Monomer
Mon. MW   118.2 kDa

UniProt   Q9LF79
Sequence   FASTA

Calmodulin-7 (Cam7)
Mol. type   Protein
Organism   Arabidopsis thaliana
Olig. state   Monomer

UniProt   P59220
