| MWexperimental | 65 | kDa |
| MWexpected | 56 | kDa |
| VPorod | 88 | nm3 |
|
log I(s)
2.12×10-3
2.12×10-4
2.12×10-5
2.12×10-6
|
s, nm-1
|
Structural underpinnings of Ric8A function as a G-protein α-subunit chaperone and guanine-nucleotide exchange factor.
Srivastava D, Gakhar L, Artemyev NO, Nat Commun 10(1):3084 (2019) Europe PMCSASDF65 – Resistance to inhibitors of cholinesterase 8 homolog A (Ric8a) amino acids 1-492
Resistance to inhibitors of cholinesterase 8 homolog A|
|
|

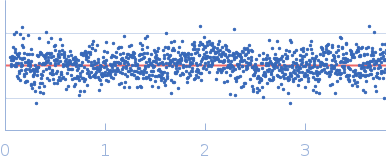

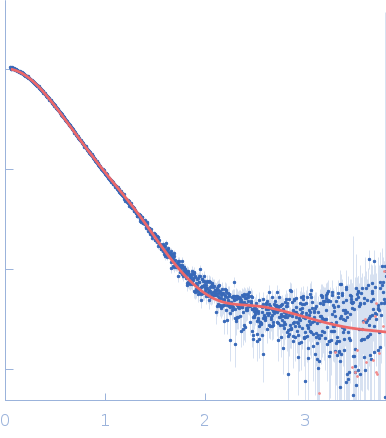

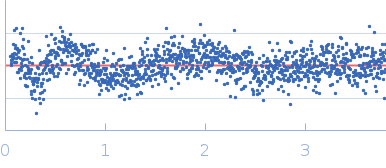

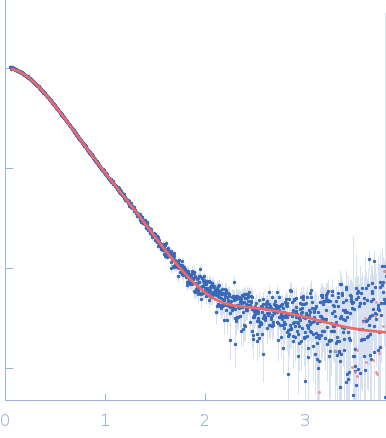

Fits and models
|
|
|
|
|
Synchrotron SAXS data from solutions of Ric8a 1-492 in 20 mM Tris, 150 mM KCl, 5 % glycerol, 1 mM TCEP, pH 8 were collected on the BioCAT 18ID beam line at the Advanced Photon Source (APS), Argonne National Laboratory (Lemont, IL, USA) using a Pilatus3 X 1M detector at a sample-detector distance of 3.5 m and at a wavelength of λ = 0.1033 nm (l(s) vs s, where s = 4πsinθ/λ, and 2θ is the scattering angle). One solute concentration of 10.00 mg/ml was measured at 25°C. The data were normalized to the intensity of the transmitted beam and radially averaged; the scattering of the solvent-blank was subtracted.
Number of frames = UNKNOWN. SEC column = UNKNOWN. Sample injection volume = UNKNOWN. Flow rate = UNKNOWN |
|
|||||||||||||||||||||||||||||||||
