| MWI(0) | 52 | kDa |
| MWexpected | 53 | kDa |
| VPorod | 66 | nm3 |
|

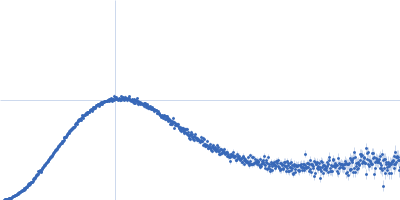

log I(s)
4.02×10-2
4.02×10-3
4.02×10-4
4.02×10-5
|
s, nm-1
|
Did evolution create a flexible ligand-binding cavity in the urokinase receptor through deletion of a plesiotypic disulfide bond?
Leth JM, Mertens HDT, Leth-Espensen KZ, Jørgensen TJD, Ploug M, J Biol Chem (2019) Europe PMCSASDFC2 – Urokinase plasminogen activator surface receptor, uPAR K50C-V70C, complex with urokinase-type plasminogen activator (Amino Terminal Fragment, ATF).
Urokinase plasminogen activator surface receptorUrokinase-type plasminogen activator (Amino Terminal Fragment)
|
|
|
Fits and models
|
|
|
Synchrotron SAXS data from solutions of uPAR K50C-V70C in complex with uPA-ATF in 20 mM PBS, 5 %(v/v) glycerol, pH 7.4 were collected on the EMBL P12 beam line at PETRA III (Hamburg, Germany) using a Pilatus 2M detector at a sample-detector distance of 3.1 m and at a wavelength of λ = 0.124 nm (l(s) vs s, where s = 4πsinθ/λ, and 2θ is the scattering angle). Solute concentrations ranging between 0.3 and 2.5 mg/ml were measured at 10°C. 20 successive 0.050 second frames were collected. The data were normalized to the intensity of the transmitted beam and radially averaged; the scattering of the solvent-blank was subtracted. The low angle data collected at lower concentrations were extrapolated to infinite dilution and merged with the higher concentration data to yield the final composite scattering curve.
Introduced disulfide in the first LU domain, DI, of uPAR (K50C-V70C). |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||
