Regulation of futile ligation during early steps of BER in M. tuberculosis is carried out by a β-clamp-XthA-LigA tri-component complex

Shukla A, Afsar M, Khanam T, Kumar N, Ali F, Kumar S, Jahan F, Ramachandran R, International Journal of Biological Macromolecules (2022) DOI

SASDFG6 – Probable exodeoxyribonuclease III protein XthA, sliding beta clamp, DNA ligase-A tricomplex

Beta sliding clamp
Probable exodeoxyribonuclease III protein XthA
DNA ligase A
MWexperimental 205 kDa
MWexpected 193 kDa
VPorod 501 nm3
log I(s) 6.03×101 6.03×100 6.03×10-1 6.03×10-2
Beta sliding clamp Probable exodeoxyribonuclease III protein XthA DNA ligase A small angle scattering data  s, nm-1
ln I(s)

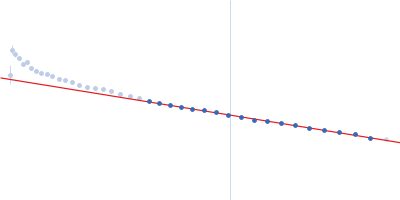

Beta sliding clamp Probable exodeoxyribonuclease III protein XthA DNA ligase A Guinier plot ln 6.04×101 Rg: 5.8 nm 0 (5.8 nm)-2 s2
(sRg)2I(s)/I(0)

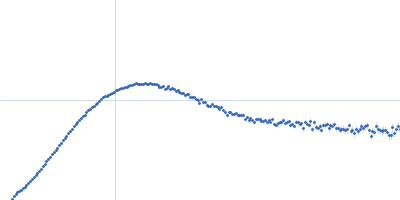

Beta sliding clamp Probable exodeoxyribonuclease III protein XthA DNA ligase A Kratky plot 1.104 0 √3 sRg
p(r)

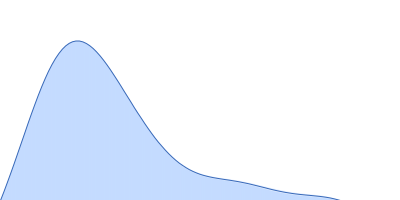

Beta sliding clamp Probable exodeoxyribonuclease III protein XthA DNA ligase A pair distance distribution function Rg: 6.4 nm 0 Dmax: 25.3 nm

Data validation

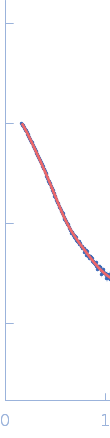

Fits and models

log I(s)
 s, nm-1
Beta sliding clamp Probable exodeoxyribonuclease III protein XthA DNA ligase A DAMMIF model
Synchrotron SAXS data from solutions of the probable XthA, sliding beta clamp, DNA ligase-A tricomplex in 50 mM Tris-HCl, 200 mM NaCl, 2 mM β-mercaptoethanol, pH 8 were collected on the BM29 beam line at the ESRF storage ring (Grenoble, France) using a Pilatus 1M detector at a sample-detector distance of 2.9 m and at a wavelength of λ = 0.0992 nm (I(s) vs s, where s = 4πsinθ/λ, and 2θ is the scattering angle). One solute concentration of 2.00 mg/ml was measured at 10°C. 10 successive 1 second frames were collected. The data were normalized to the intensity of the transmitted beam and radially averaged; the scattering of the solvent-blank was subtracted.

The presented model shows the spatial alignment of several individually calculated models and does not fit the SAXS data. A corresponding individual model fit (individual model not provided for this entry) is shown. The sample shows signs of severe aggregation.

Beta sliding clamp
Mol. type   Protein
Organism   Mycobacterium tuberculosis
Olig. state   Dimer
Mon. MW   42.9 kDa

UniProt   P9WNU1 (1-402)
Sequence   FASTA

Probable exodeoxyribonuclease III protein XthA (MtbXthA)
Mol. type   Protein
Organism   Mycobacterium tuberculosis
Olig. state   Monomer
Mon. MW   30.7 kDa

UniProt   A0A0T9L251 (1-289)
Sequence   FASTA

DNA ligase A
Mol. type   Protein
Organism   Mycobacterium tuberculosis
Olig. state   Monomer
Mon. MW   76.1 kDa

UniProt   P9WNV1 (1-691)
Sequence   FASTA
