Synchrotron SAXS data from solutions of DMPC vesicles in water, pH 7 were collected on the EMBL P12 beam line at the PETRA III storage ring (Hamburg, Germany) using a Pilatus 6M detector at a sample-detector distance of 3.1 m and at a wavelength of λ = 0.124 nm (I(s) vs s, where s = 4πsinθ/λ, and 2θ is the scattering angle). One solute concentration of 10 mg/ml was measured at 30°C. 20 successive 0.050 second frames were collected. The data were normalized to the intensity of the transmitted beam and radially averaged; the scattering of the solvent-blank was subtracted.

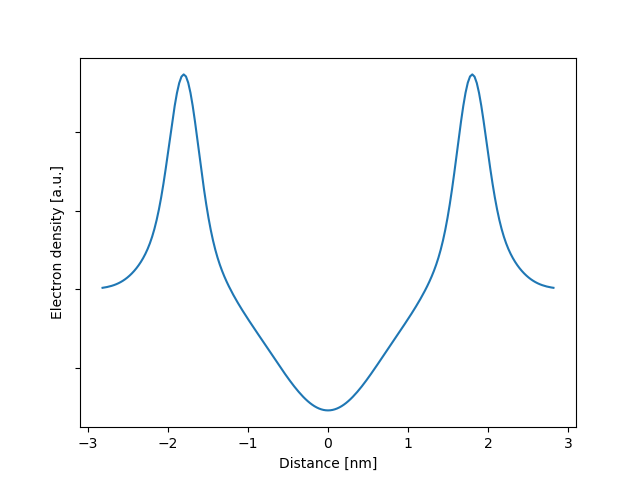

DMPC vesicles were extruded through 100 nm pore-diameter filter prior to analysis. Experimental molecular weight estimates do not apply in this instance (in context of the inherent size-distribution, inter-vesicle interactions and multiple contrasts of the sample) and therefore the MW of one DMPC molecule is quoted. The resulting fit to the data and corresponding plot reflects the relative electron density profile perpendicular to the DMPC bilayer of the vesicles, i.e., a bilayer thickness electron density profile, that takes into account the n-component volume-fraction weighted form factors and size distribution of the DMPC vesicle population in solution. Note: For visualization purposes only, the I(s) axis has been arbitrarily scaled in the primary data display (the downloadable .dat and additional files located in the full-entry zip-archive are not scaled accordingly).
|
|
s, nm-1
![1,2-dimyristoyl-sn-glycero-3-phosphocholine OTHER [STATIC IMAGE] model](/media//pdb_file/SASDG72_fit1_model1.png "Static model image")
