The dual PDZ domain from Postsynaptic density protein 95 forms a scaffold with peptide ligand

Rodzli N, Lockhart-Cairns M, Levy C, Chipperfield J, Bird L, Baldock C, Prince S, Biophysical Journal (2020) DOI

SASDGB5 – The PDZ1-2 domain of postsynaptic density protein 95 (PSD-95) bound to RRESEI peptide

PDZ1-2 fragment of PSD-95/Disks large homolog 4
MWexperimental 21 kDa
MWexpected 21 kDa
VPorod 32 nm3
log I(s) 4.75×104 4.75×103 4.75×102 4.75×101
PDZ1-2 fragment of PSD-95/Disks large homolog 4 small angle scattering data  s, nm-1
ln I(s)

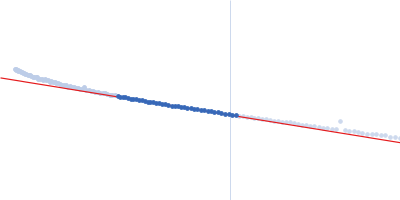

PDZ1-2 fragment of PSD-95/Disks large homolog 4 Guinier plot ln 4.76×104 Rg: 3.0 nm 0 (3.0 nm)-2 s2
(sRg)2I(s)/I(0)

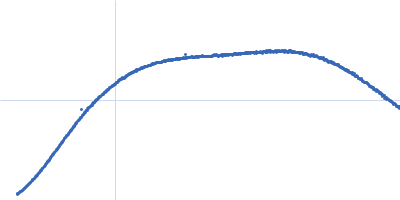

PDZ1-2 fragment of PSD-95/Disks large homolog 4 Kratky plot 1.104 0 3 sRg
p(r)

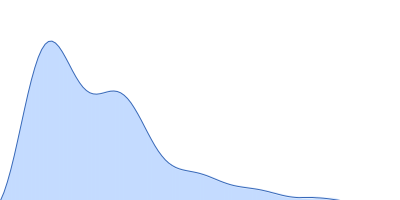

PDZ1-2 fragment of PSD-95/Disks large homolog 4 pair distance distribution function Rg: 3.1 nm 0 Dmax: 13.1 nm

Data validation

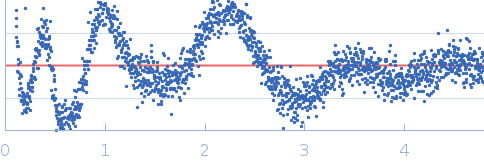

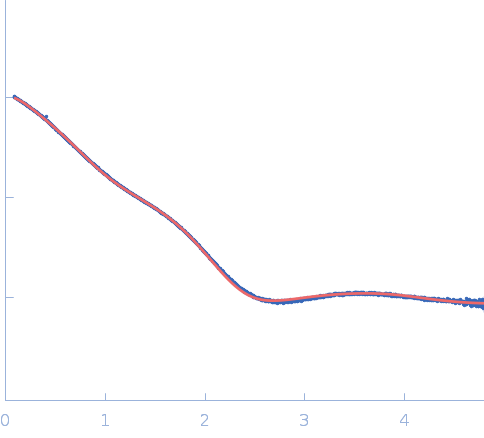

Fits and models


log I(s)
 s, nm-1

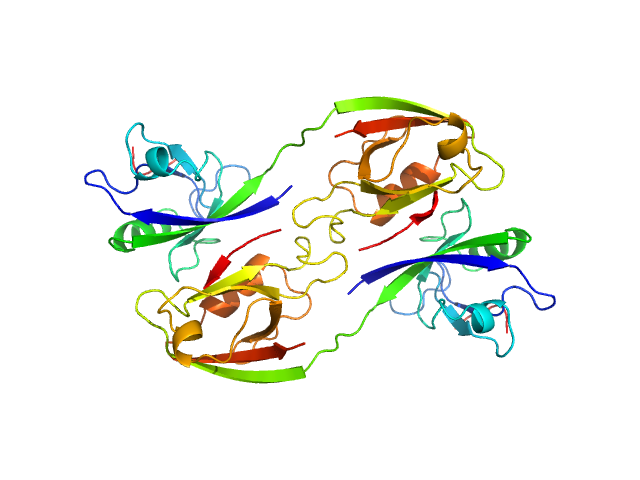

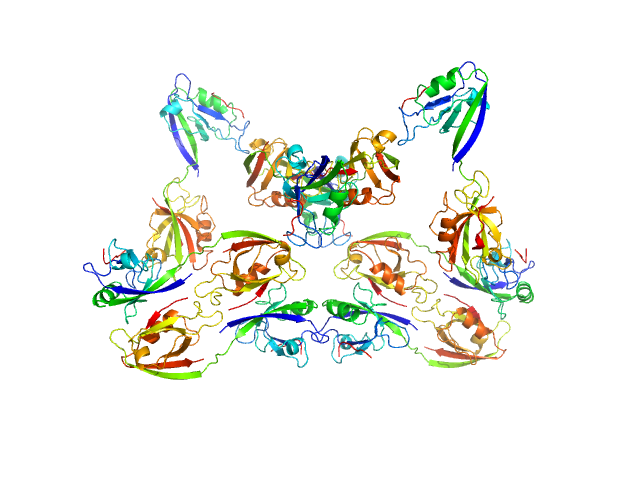

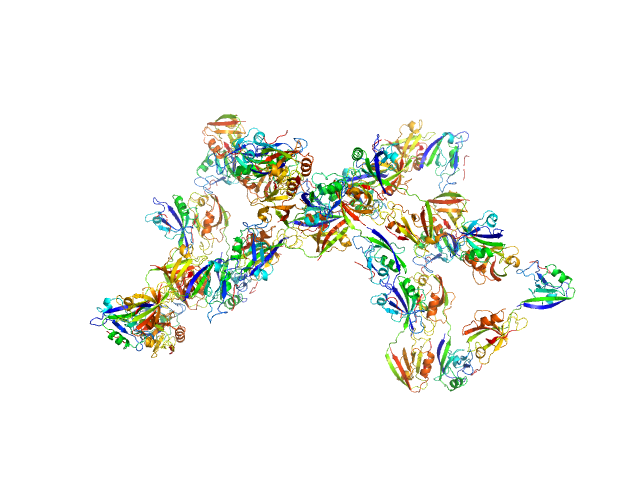

PDZ1-2 fragment of PSD-95/Disks large homolog 4 OTHER model
PDZ1-2 fragment of PSD-95/Disks large homolog 4 OTHER model
PDZ1-2 fragment of PSD-95/Disks large homolog 4 OTHER model
PDZ1-2 fragment of PSD-95/Disks large homolog 4 OTHER model
PDZ1-2 fragment of PSD-95/Disks large homolog 4 OTHER model
PDZ1-2 fragment of PSD-95/Disks large homolog 4 OTHER model
PDZ1-2 fragment of PSD-95/Disks large homolog 4 OTHER model
PDZ1-2 fragment of PSD-95/Disks large homolog 4 OTHER model
PDZ1-2 fragment of PSD-95/Disks large homolog 4 OTHER model
PDZ1-2 fragment of PSD-95/Disks large homolog 4 OTHER model

Synchrotron SAXS data from solutions of the PDZ1-2 domain of postsynaptic density protein 95 (PSD-95) bound to RRESEI peptide in 20 mM TRIS/HCl, 150 mM NaCl + 10 mM RRESEI, pH 8.5 were collected on the EMBL P12 beam line at the PETRA III storage ring (Hamburg, Germany) using a Pilatus 2M detector at a sample-detector distance of 3 m and at a wavelength of λ = 0.124 nm (I(s) vs s, where s = 4πsinθ/λ, and 2θ is the scattering angle). One solute concentration of 15.00 mg/ml was measured at 15°C. 15 successive 0.050 second frames were collected. The data were normalized to the intensity of the transmitted beam and radially averaged; the scattering of the solvent-blank was subtracted.

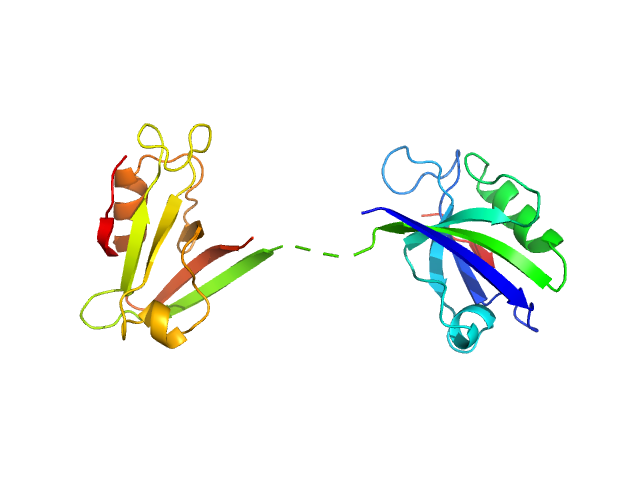

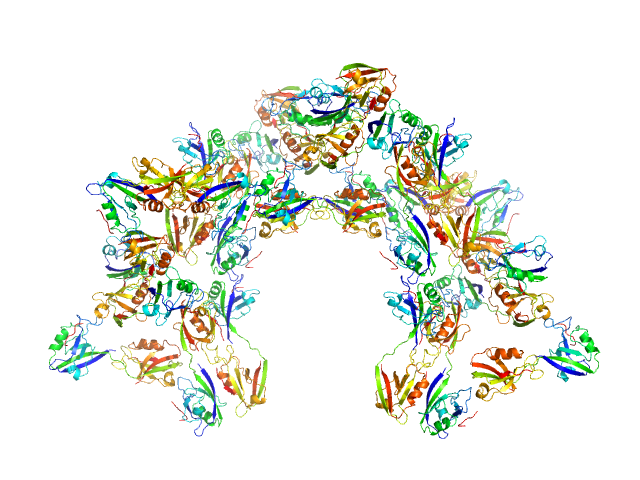

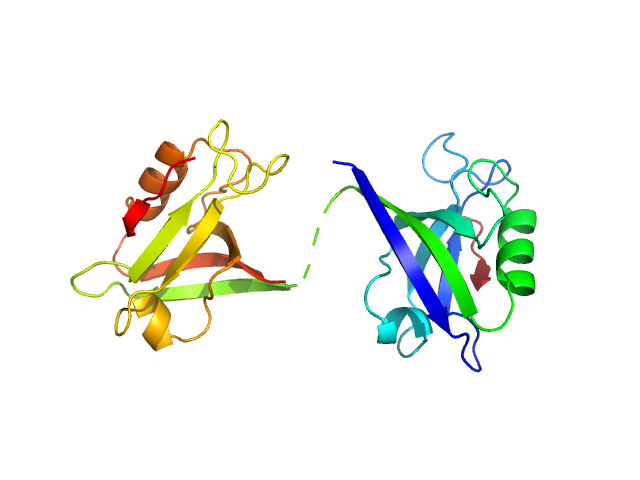

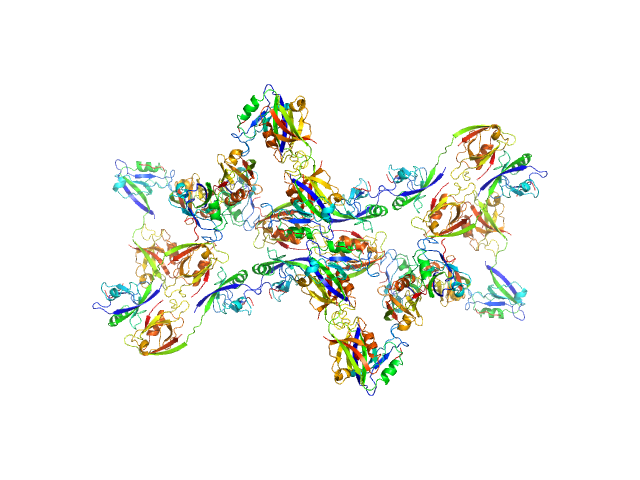

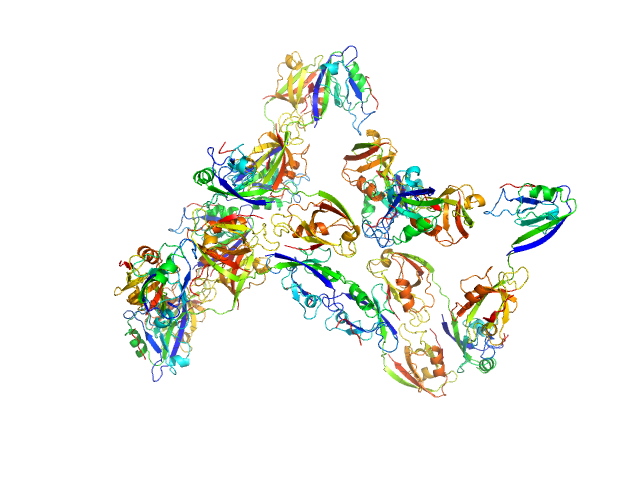

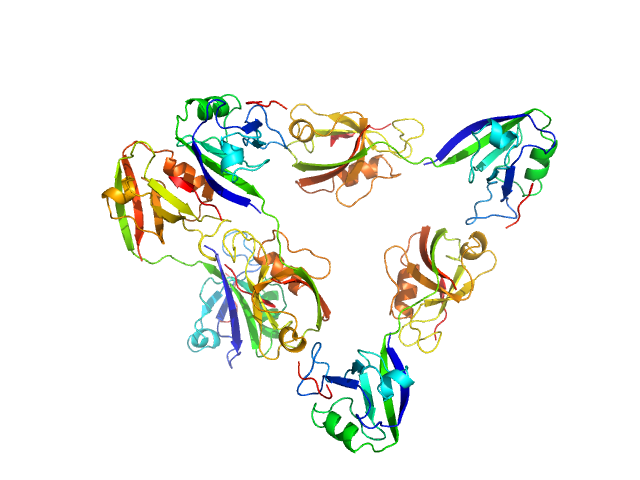

Scattering data are fitted using the ATSAS OLIGOMER program using a suite of models. The ATSAS program FFMAKER was used to generate form factors for each model in the suite. Each model is assigned a volume fraction to fit the observed scattering profile. 3 monomer models are included, the first is a compact conformation of PDZ1-2 similar to PDB entries 6spv/6spz; the other two are domain models obtained from a representative run of the ATSAS EOM program with data projected to infinite dilution. Multimeric models are drawn from a "clustering Spacegroup", unit cell 14.8nm symmetry I2(1)3, and consist of identical copies of an extended conformation of PDZ1-2 (similar to PDB entry 3zrt) assembled by symmetry operations. In the order of deposition: Model number; Stoichiometry; MW (kDa); source; Volume fraction. 1; 1; 21; Crystal Structure; 0.112. 2; 1; 21; EOM; 0.186. 3; 1; 21; EOM; 0.656. 4; 2; 42; clustering Spacegroup; 0.000. 5; 4; 84; clustering Spacegroup; 0.000. 6; 8; 168; clustering Spacegroup; 0.034. 7; 12, 252; clustering Spacegroup; 0.005. 8; 16, 336, clustering Spacegroup; 0.000. 9; 20, 420, clustering Spacegroup; 0.000. 10; 24, 504, clustering Spacegroup; 0.006.

PDZ1-2 fragment of PSD-95/Disks large homolog 4 (PDZ1-2)
Mol. type   Protein
Organism   Homo sapiens
Olig. state   Monomer
Mon. MW   20.8 kDa

UniProt   P78352 (55-249)
Sequence   FASTA
