Structural Analysis of Pathogenic Mutations Targeting Glu427 of ALDH7A1, the Hot Spot Residue of Pyridoxine-Dependent Epilepsy.

Laciak AR, Korasick DA, Gates KS, Tanner JJ, J Inherit Metab Dis (2019) Europe PMC

SASDGR4 – Human alpha-aminoadipic semialdehyde dehydrogenase (ALDH)7A1 E399D at 5.7 mg/mL

Alpha-aminoadipic semialdehyde dehydrogenase E399D
MWexperimental 206 kDa
MWexpected 56 kDa
VPorod 272 nm3
log I(s) 9.55×101 9.55×100 9.55×10-1 9.55×10-2
Alpha-aminoadipic semialdehyde dehydrogenase E399D small angle scattering data  s, nm-1
ln I(s)
Alpha-aminoadipic semialdehyde dehydrogenase E399D Guinier plot ln 9.55×101 Rg: 3.9 nm 0 (3.9 nm)-2 s2
(sRg)2I(s)/I(0)

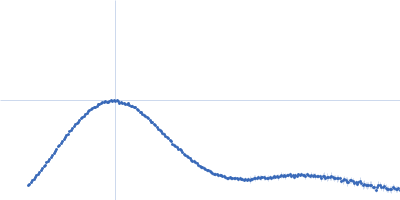

Alpha-aminoadipic semialdehyde dehydrogenase E399D Kratky plot 1.104 0 3 sRg
Dmax: 10.6 nm

Data validation

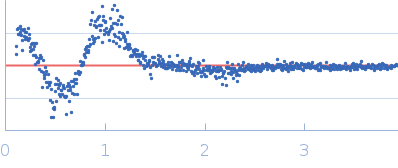

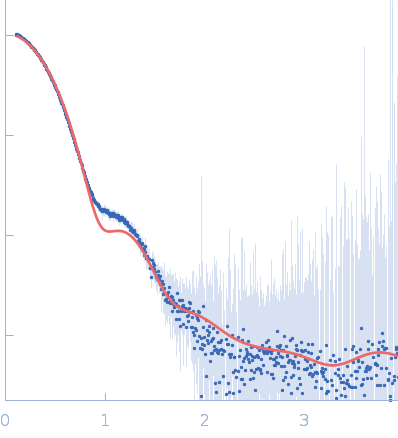

Fits and models


log I(s)
 s, nm-1
Alpha-aminoadipic semialdehyde dehydrogenase E399D PDB (PROTEIN DATA BANK) model
Alpha-aminoadipic semialdehyde dehydrogenase E399D PDB (PROTEIN DATA BANK) model

Synchrotron SAXS data from solutions of Human alpha-aminoadipic semialdehyde dehydrogenase (ALDH)7A1 E399D at 5.7 mg/mL in 50 mM HEPES, 100 mM NaCl, 1 mM DTT, 10 mM NAD, 2% (v/v) glycerol, pH 8 were collected on the 12.3.1 (SIBYLS) beam line at the Advanced Light Source (ALS) storage ring (Berkeley, CA, USA) using a Pilatus3 X 2M detector at a sample-detector distance of 2 m and at a wavelength of λ = 0.127 nm (I(s) vs s, where s = 4πsinθ/λ, and 2θ is the scattering angle). One solute concentration of 5.70 mg/ml was measured at 10°C. The data were normalized to the intensity of the transmitted beam and radially averaged; the scattering of the solvent-blank was subtracted.

X-ray Exposure time = UNKNOWN. Number of frames = UNKNOWN

Alpha-aminoadipic semialdehyde dehydrogenase E399D (ALDH7A1 E399D)
Mol. type   Protein
Organism   Homo sapiens
Olig. state   Unknown
Mon. MW   55.5 kDa

UniProt   P49419
Sequence   FASTA

PDB ID   4ZUK

PDB ID   4ZUK
