Solution structure of Plasmodium falciparum Hsp90 indicates a high flexible dimer

Silva N, Torricillas M, Minari K, Barbosa L, Seraphim T, Borges J, Archives of Biochemistry and Biophysics :108468 (2020) DOI

SASDHF9 – Plasmodium falciparum Heat shock protein 90 (PfHsp90) M-domain

Plasmodium falciparum Heat shock protein 90 middle domain
MWexperimental 40 kDa
MWexpected 33 kDa
VPorod 47 nm3
log I(s) 1.80×106 1.80×105 1.80×104 1.80×103
Plasmodium falciparum Heat shock protein 90 middle domain small angle scattering data  s, nm-1
ln I(s)
Plasmodium falciparum Heat shock protein 90 middle domain Guinier plot ln 1.80×106 Rg: 2.4 nm 0 (2.4 nm)-2 s2
(sRg)2I(s)/I(0)

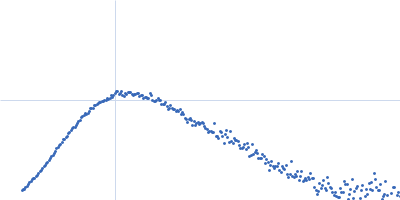

Plasmodium falciparum Heat shock protein 90 middle domain Kratky plot 1.104 0 √3 sRg
p(r)

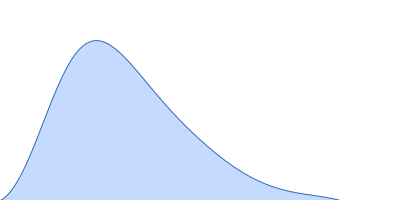

Plasmodium falciparum Heat shock protein 90 middle domain pair distance distribution function Rg: 2.5 nm 0 Dmax: 8.5 nm

Data validation

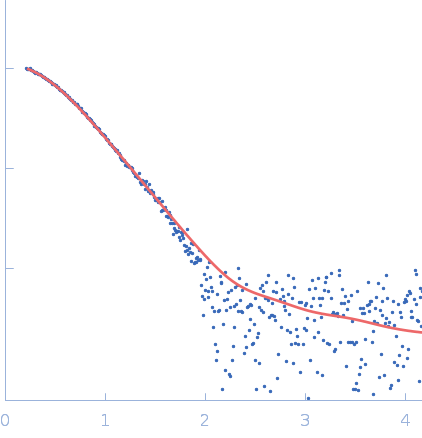

Fits and models

log I(s)
 s, nm-1
Plasmodium falciparum Heat shock protein 90 middle domain DAMMIN model
Plasmodium falciparum Heat shock protein 90 middle domain DAMFILT model
Synchrotron SAXS data from solutions of the M domain of P. falciparum Heat shock protein 90 (PfHsp90) in 25 mM Tris-HCl, 100 mM KCl, 1 mM β-mercaptoethanol, 1 mM EDTA, pH 7.5 were collected on the SAXS1 Beamline beam line at the Brazilian Synchrotron Light Laboratory (Campinas, Brazil) using a Pilatus 300K detector at a sample-detector distance of 1 m and at a wavelength of λ = 0.1448 nm (I(s) vs s, where s = 4πsinθ/λ, and 2θ is the scattering angle). One solute concentration of 3.10 mg/ml was measured at 20°C. The data were normalized to the intensity of the transmitted beam and radially averaged; the scattering of the solvent-blank was subtracted.

Samples were measured for 6 x 10 seconds , 1 x 100 seconds and 1 x 300 second frames. The PfHsp90 sample concentrations were 1.2, 1.9 and 3.1 mg/mL. Data analysis was performed using the ATSAS 2.7.2 program. Ab initio modeling was performed using the DAMMIN program. Average of DA models was done by the DAMAVER package. Further refinement was done using the DAMMIN program.

Plasmodium falciparum Heat shock protein 90 middle domain (PfHsp90MD)
Mol. type   Protein
Organism   Plasmodium falciparum
Olig. state   Monomer
Mon. MW   32.5 kDa

UniProt   Q8IC05 (312-566)
Sequence   FASTA
