Inhibition, crystal structures, and in-solution oligomeric structure of aldehyde dehydrogenase 9A1.

Wyatt JW, Korasick DA, Qureshi IA, Campbell AC, Gates KS, Tanner JJ, Arch Biochem Biophys :108477 (2020) Europe PMC

SASDHV5 – Human 4-trimethylaminobutyraldehyde dehydrogenase (ALDH9A1) at 1.25 mg/mL

4-trimethylaminobutyraldehyde dehydrogenase
MWexperimental 203 kDa
MWexpected 215 kDa
VPorod 252 nm3
log I(s) 8.47×100 8.47×10-1 8.47×10-2 8.47×10-3
4-trimethylaminobutyraldehyde dehydrogenase small angle scattering data  s, nm-1
ln I(s)

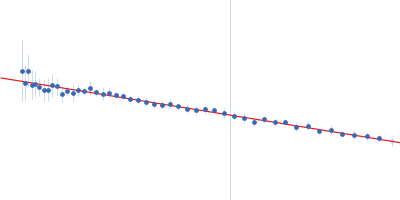

4-trimethylaminobutyraldehyde dehydrogenase Guinier plot ln 8.47×100 Rg: 3.8 nm 0 (3.8 nm)-2 s2
(sRg)2I(s)/I(0)

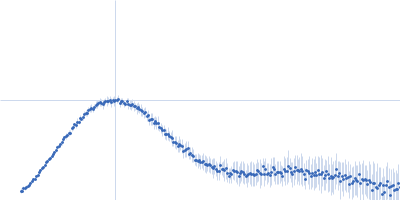

4-trimethylaminobutyraldehyde dehydrogenase Kratky plot 1.104 0 √3 sRg
p(r)

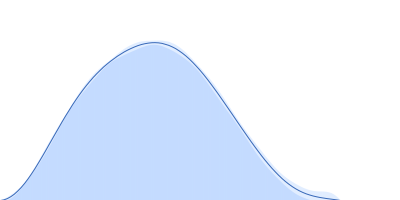

4-trimethylaminobutyraldehyde dehydrogenase pair distance distribution function Rg: 3.7 nm 0 Dmax: 10.9 nm

Data validation

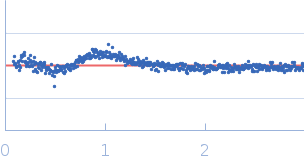

Fits and models

log I(s)
 s, nm-1

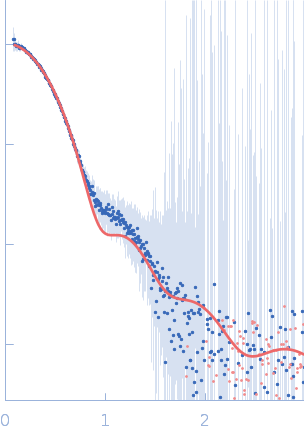

4-trimethylaminobutyraldehyde dehydrogenase OTHER model
Synchrotron SAXS data from solutions of 4-trimethylaminobutyraldehyde dehydrogenase in 50 mM HEPES, 600 mM NaCl, 2% (v/v) glycerol, 1 mM DTT, 1 mM NAD+, pH 8 were collected on the 12.3.1 (SIBYLS) beam line at the Advanced Light Source (ALS; Berkeley, CA, USA) using a Pilatus3 X 2M detector at a sample-detector distance of 2 m and at a wavelength of λ = 0.127 nm (I(s) vs s, where s = 4πsinθ/λ, and 2θ is the scattering angle). One solute concentration of 1.25 mg/ml was measured at 10°C using a 0.2 s exposure time. The data were normalized to the intensity of the transmitted beam and radially averaged; the scattering of the solvent-blank was subtracted.

Storage temperature = UNKNOWN. Number of frames = UNKNOWN

4-trimethylaminobutyraldehyde dehydrogenase
Mol. type   Protein
Organism   Homo sapiens
Olig. state   Tetramer
Mon. MW   53.7 kDa

UniProt   P49189 (2-494)
Sequence   FASTA
