SASDJ27 – Collagenase H C-terminal non-catalytic segments Polycystic Kidney disease domain 2 (PKD2) and Collagen binding domain (CBD) with Tyr780Ser, His782Ser, Tyr796Ser and Tyr801Ser bound to triple helical collagen like-peptide

MWexperimental 35 kDa MWexpected 34 kDa VPorod 34 nm3 log I(s) 7.09×100 7.09×10-1 7.09×10-2 7.09×10-3  s, nm-1 Log plot Log-Log plot

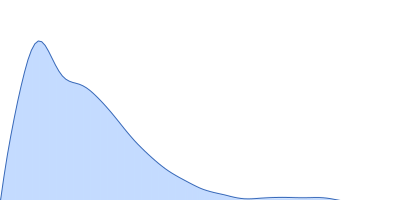

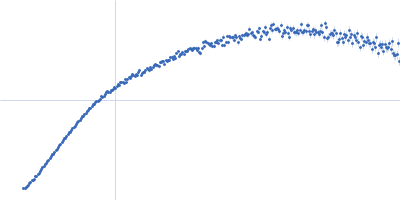

ln I(s) ln 7.09×100 Rg: 3.2 nm 0 (3.2 nm)-2 s2 (sRg)2I(s)/I(0) 1.104 0 √3 sRg p(r) Rg: 3.7 nm 0 Dmax: 18 nm

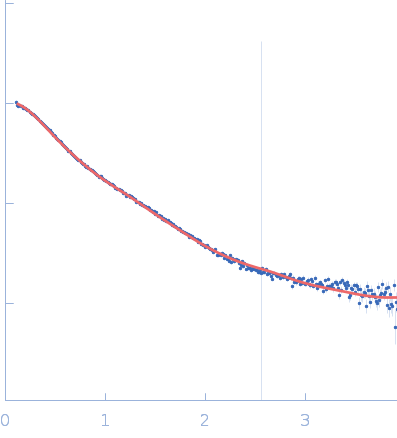

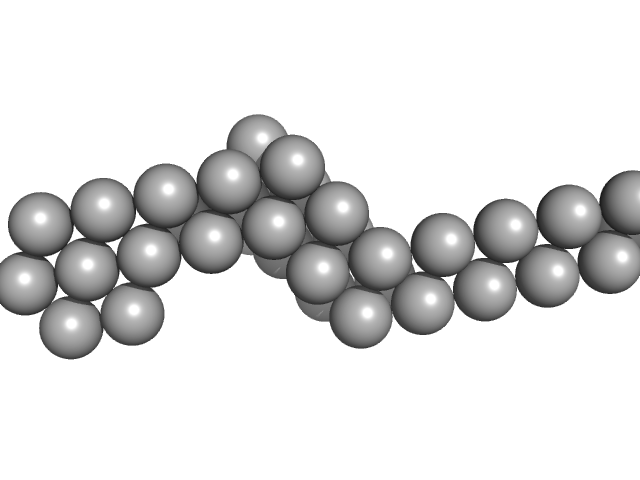

Fits and models

---

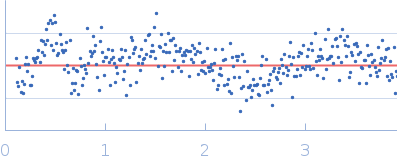

log I(s)  s, nm-1 +3 Δ/σ -3  s, nm-1 Fit validation Metric Value pcormap χ² 0 2.524 Worse Better

---

Synchrotron SAXS data from solutions of Collagenase H C-terminal non-catalytic segments Polycystic Kidney disease domain 2 (PKD2) and Collagen binding domain (CBD) with Tyr780Ser, His782Ser, Tyr796Ser and Tyr801Ser bound to triple helical collagen like-peptide in 50 mM HEPES, 100 mM NaCl, 5 mM CaCl2, pH 7.5 were collected on the 12.3.1 (SIBYLS) beam line at the Advanced Light Source (ALS) storage ring (Berkeley, CA, USA) using a Pilatus3 X 2M detector at a sample-detector distance of 1.5 m and at a wavelength of λ = 0.1127 nm (I(s) vs s, where s = 4πsinθ/λ, and 2θ is the scattering angle). One solute concentration of 4.00 mg/ml was measured at 10°C. 33 successive 0.300 second frames were collected. The data were normalized to the intensity of the transmitted beam and radially averaged; the scattering of the solvent-blank was subtracted. Storage temperature = UNKNOWN

Collagen like-peptide [GPRG(POG)13] Mol. type   Protein Olig. state   Trimer Mon. MW   3.7 kDa Sequence   FASTA   Collagenase ColH (Polycystic kidney disease domain 2 (PKD2) and Collagen binding domain (CBD) with Tyr780Ser, His782Ser, Tyr796Ser and Tyr801Ser) (ColH) Mol. type   Protein Organism   Hathewaya histolytica Olig. state   Monomer Mon. MW   23.1 kDa   UniProt   Q46085 (811-1021) Sequence   FASTA
