SASDJ37 – Collagenase H C-terminal non-catalytic segments Polycystic Kidney disease domain 2 (PKD2) and Collagen binding domain (CBD) bound to triple helical collagen like-peptide

MWexperimental 29 kDa MWexpected 34 kDa VPorod 35 nm3 log I(s) 6.91×100 6.91×10-1 6.91×10-2 6.91×10-3  s, nm-1 Log plot Log-Log plot

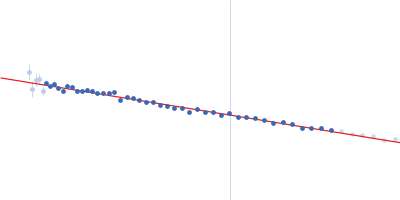

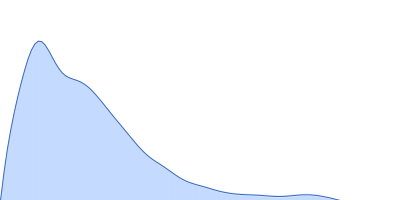

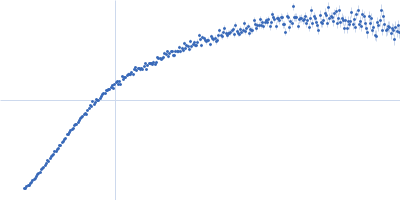

ln I(s) ln 6.91×100 Rg: 3.3 nm 0 (3.3 nm)-2 s2 (sRg)2I(s)/I(0) 1.104 0 √3 sRg p(r) Rg: 3.9 nm 0 Dmax: 18 nm

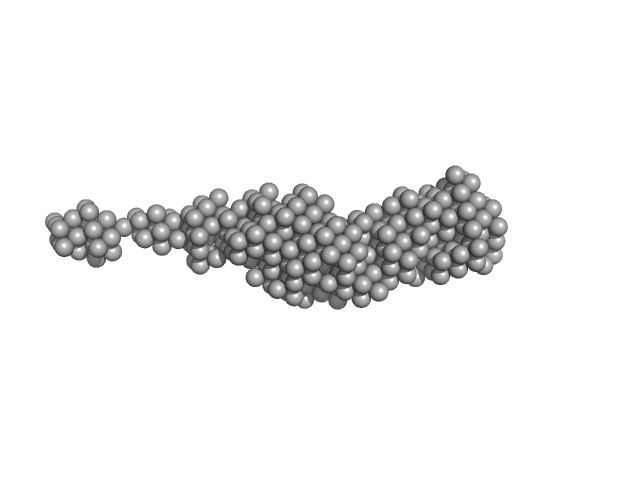

Fits and models

---

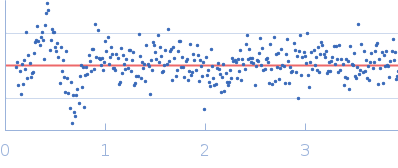

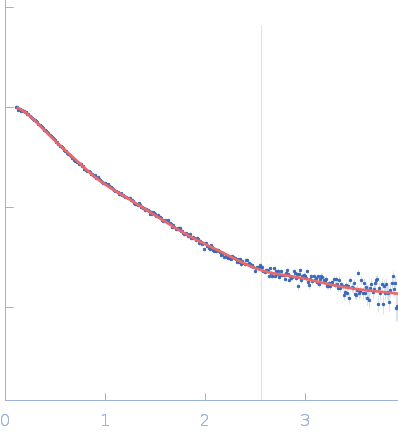

log I(s)  s, nm-1 +3 Δ/σ -3  s, nm-1 Fit validation Metric Value pcormap χ² 0 2.481 Worse Better

---

Synchrotron SAXS data from solutions of Collagenase H C-terminal non-catalytic segments Polycystic Kidney disease domain 2 (PKD2) and Collagen binding domain (CBD) bound to triple helical collagen like-peptide in 50 mM HEPES, 100 mM NaCl, 5 mM CaCl2, pH 7.5 were collected on the 12.3.1 (SIBYLS) beam line at the Advanced Light Source (ALS) storage ring (Berkeley, CA, USA) using a Pilatus3 X 2M detector at a sample-detector distance of 1.5 m and at a wavelength of λ = 0.1127 nm (I(s) vs s, where s = 4πsinθ/λ, and 2θ is the scattering angle). Solute concentrations ranging between 2 and 4 mg/ml were measured at 10°C. 50 successive 0.300 second frames were collected. The data were normalized to the intensity of the transmitted beam and radially averaged; the scattering of the solvent-blank was subtracted. The low angle data collected at lower concentrations were extrapolated to infinite dilution and merged with the higher concentration data to yield the final composite scattering curve. Storage temperature = UNKNOWN

Collagenase ColH (Polycystic kidney disease domain 2 (PKD2) and Collagen binding domain (CBD)) (ColH) Mol. type   Protein Organism   Hathewaya histolytica Olig. state   Monomer Mon. MW   23.4 kDa   UniProt   Q46085 (811-1021) Sequence   FASTA   Collagen like-peptide [GPRG(POG)13] Mol. type   Protein Olig. state   Trimer Mon. MW   3.7 kDa Sequence   FASTA
