Towards improved understanding of intersubunit interactions in modular polyketide biosynthesis: docking in the enacyloxin IIa polyketide synthase.

Risser F, Collin S, Dos Santos-Morais R, Gruez A, Chagot B, Weissman KJ, J Struct Biol :107581 (2020) Europe PMC

SASDJK2 – Artificial fusion protein of the beta-ketoacyl synthase Bamb_5920 C-terminal docking domain and the beta-ketoacyl synthase Bamb_5919 N-terminal docking domain

Beta-ketoacyl synthase Bamb_5920 CDD/Bamb_5919 NDD artificial protein fusion
MWexperimental 13 kDa
MWexpected 13 kDa
VPorod 25 nm3
log I(s) 2.40×10-2 2.40×10-3 2.40×10-4 2.40×10-5
Beta-ketoacyl synthase Bamb_5920 CDD/Bamb_5919 NDD artificial protein fusion small angle scattering data  s, nm-1
ln I(s)

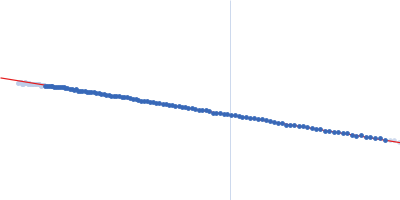

Beta-ketoacyl synthase Bamb_5920 CDD/Bamb_5919 NDD artificial protein fusion Guinier plot ln 2.41×10-2 Rg: 1.8 nm 0 (1.8 nm)-2 s2
(sRg)2I(s)/I(0)

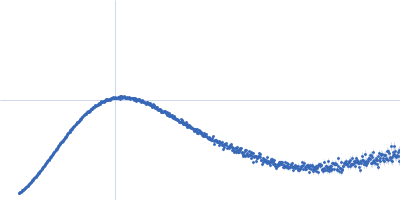

Beta-ketoacyl synthase Bamb_5920 CDD/Bamb_5919 NDD artificial protein fusion Kratky plot 1.104 0 3 sRg
p(r)

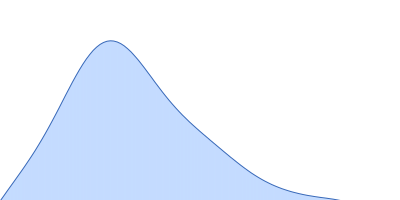

Beta-ketoacyl synthase Bamb_5920 CDD/Bamb_5919 NDD artificial protein fusion pair distance distribution function Rg: 1.8 nm 0 Dmax: 6 nm

Data validation

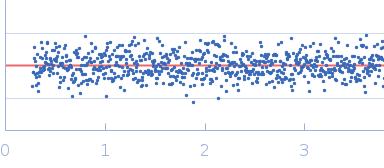

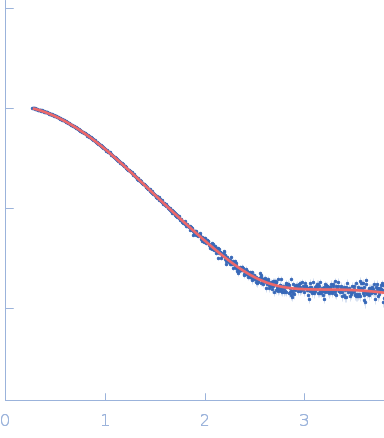

Fits and models


log I(s)
 s, nm-1
Beta-ketoacyl synthase Bamb_5920 CDD/Bamb_5919 NDD artificial protein fusion DAMFILT model
Beta-ketoacyl synthase Bamb_5920 CDD/Bamb_5919 NDD artificial protein fusion PDB (PROTEIN DATA BANK) model

Synchrotron SAXS data from solutions of the Bamb_5920 CDD/Bamb_5919 NDD fusion protein in 20 mM Tris-HCl, 200 mM NaCl, 5% glycerol, pH 7.5 were collected on the SWING beam line at SOLEIL (Saint-Aubin, France) using a AVIEX PCCD170170 detector at a sample-detector distance of 1.8 m and at a wavelength of λ = 0.1 nm (I(s) vs s, where s = 4πsinθ/λ, and 2θ is the scattering angle). In-line size-exclusion chromatography (SEC) SAS was employed. The SEC parameters were as follows: A 50.00 μl sample at 15 mg/ml was injected at a 0.10 ml/min flow rate onto a Agilent Bio SEC-3, 100 Å column at 15°C. 100 successive 0.750 second frames were collected. The data were normalized to the intensity of the transmitted beam and radially averaged; the scattering of the solvent-blank was subtracted.

The protein samples were injected using the online automatic sample changer into a pre-equilibrated HPLC-coupled size-exclusion chromatography column.

Beta-ketoacyl synthase Bamb_5920 CDD/Bamb_5919 NDD artificial protein fusion (5920/5919 fusion)
Mol. type   Protein
Organism   Burkholderia ambifaria
Olig. state   Dimer
Mon. MW   6.7 kDa
Sequence   FASTA

PDB ID   6TDM
