Comparison of angiopoietin-like protein 3 and 4 reveals structural and mechanistic similarities.

Gunn KH, Gutgsell AR, Xu Y, Johnson CV, Liu J, Neher SB, J Biol Chem :100312 (2021) Europe PMC

SASDJK8 – N-terminal Angiopoietin-like protein 3 Hexamer

Angiopoietin-like protein 3 (N-terminal)
MWexperimental 132 kDa
MWexpected 161 kDa
VPorod 380 nm3
log I(s) 1.38×101 1.38×100 1.38×10-1 1.38×10-2
Angiopoietin-like protein 3 (N-terminal) small angle scattering data  s, nm-1
ln I(s)

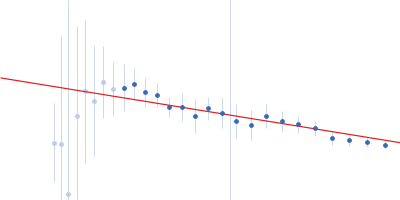

Angiopoietin-like protein 3 (N-terminal) Guinier plot ln 1.38×101 Rg: 5.6 nm 0 (5.6 nm)-2 s2
(sRg)2I(s)/I(0)

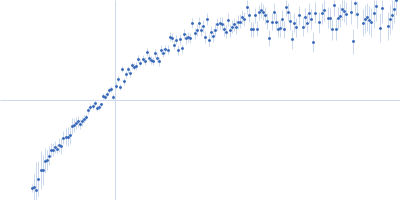

Angiopoietin-like protein 3 (N-terminal) Kratky plot 1.104 0 √3 sRg
p(r)

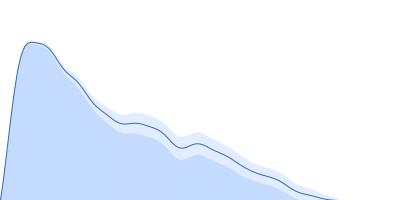

Angiopoietin-like protein 3 (N-terminal) pair distance distribution function Rg: 9.3 nm 0 Dmax: 34 nm

Data validation

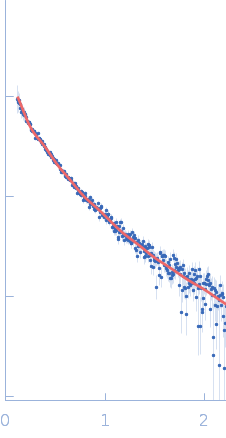

Fits and models

log I(s)
 s, nm-1
Angiopoietin-like protein 3 (N-terminal) DAMMIN model
Synchrotron SAXS data from solutions of angiopoietin-like protein 3 in 20 mM Tris-HCl pH 7.5, 400 mM NaCl, 2% glycerol, pH 7.5 were collected on the 12.3.1 (SIBYLS) beam line at the Advanced Light Source (ALS, Berkeley, CA, USA) using a Pilatus3 X 2M detector at a sample-detector distance of 1.5 m and at a wavelength of λ = 0.07 nm (I(s) vs s, where s = 4πsinθ/λ, and 2θ is the scattering angle). In-line size-exclusion chromatography (SEC) SAS was employed. The SEC parameters were as follows: A 80.00 μl sample at 5.6 mg/ml was injected at a 0.50 ml/min flow rate onto a Shodex KW-800 series column at 25°C. The data were normalized to the intensity of the transmitted beam and radially averaged; the scattering of the solvent-blank was subtracted.

Number of frames = UNKNOWN

Angiopoietin-like protein 3 (N-terminal) (ANGPTL3)
Mol. type   Protein
Organism   Homo sapiens
Olig. state   Hexamer
Mon. MW   26.8 kDa

UniProt   Q9Y5C1 (16-224)
Sequence   FASTA
