| MWexperimental | 458 | kDa |
| MWexpected | 448 | kDa |
| VPorod | 898 | nm3 |
|
log I(s)
1.78×101
1.78×100
1.78×10-1
1.78×10-2
|
s, nm-1
|
Structural and biochemical characterization of RNA polymerase core and UvrD complex: a key component in transcription coupled DNA repair
Ravishankar Ramachandran.SASDJL4 – RNA polymerase core subunit in complex with ATP-dependent DNA helicase UvrD1
DNA-directed RNA polymerase subunit alphaDNA-directed RNA polymerase subunit beta
DNA-directed RNA polymerase subunit beta'
DNA-directed RNA polymerase subunit omega
ATP-dependent DNA helicase UvrD1
|
|
|

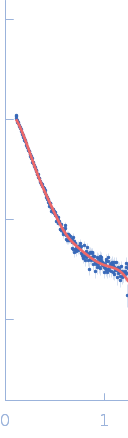

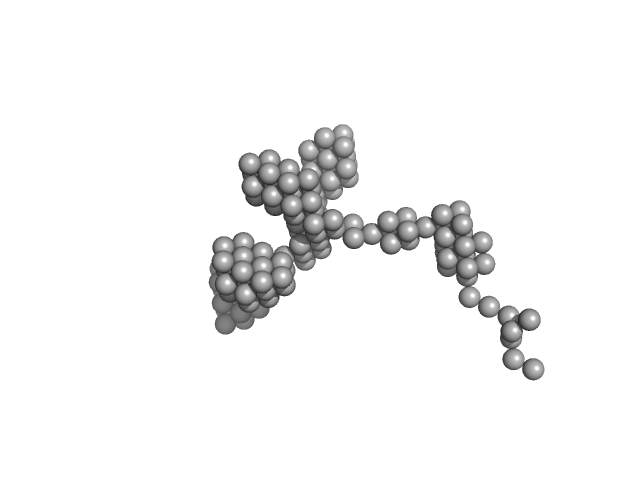

Fits and models
|
|
|
Synchrotron SAXS data from solutions of the RNA polymerase core subunit in complex with ATP-dependent DNA helicase UvrD1 in 10 mM Tris-Cl, 100 mM NaCl, 10 mM MgCl2, 0.1 mM EDTA, 5% Glycerol, pH 8 were collected on the BM29 beam line at the ESRF (Grenoble, France) using a Pilatus 1M detector at a sample-detector distance of 2.9 m and at a wavelength of λ = 0.0992 nm (I(s) vs s, where s = 4πsinθ/λ, and 2θ is the scattering angle). One solute concentration of 6.40 mg/ml was measured at 4°C. 10 successive 1 second frames were collected. The data were normalized to the intensity of the transmitted beam and radially averaged; the scattering of the solvent-blank was subtracted.
Sample is likely aggregated. |
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
