Stable Picodisc Assemblies from Saposin Proteins and Branched Detergents.

Kurgan KW, Chen B, Brown KA, Falco Cobra P, Ye X, Ge Y, Gellman SH, Biochemistry 60(14):1108-1119 (2021) Europe PMC

SASDJP9 – Saposin-A plus LMNG (2,2-didecylpropane-1,3-bis-β-D-maltopyranoside)

Prosaposin (Saposin-A)
2,2-didecylpropane-1,3-bis-β-D-maltopyranoside
MWexperimental 28 kDa
MWexpected 34 kDa
log I(s) 7.97×10-2 7.97×10-3 7.97×10-4 7.97×10-5
Prosaposin (Saposin-A) 2,2-didecylpropane-1,3-bis-β-D-maltopyranoside small angle scattering data  s, nm-1

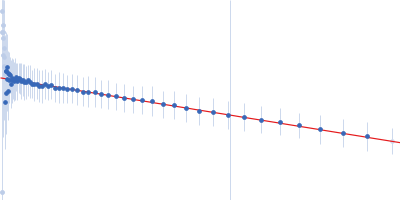

ln I(s)
Prosaposin (Saposin-A) 2,2-didecylpropane-1,3-bis-β-D-maltopyranoside Guinier plot ln 7.98×10-2 Rg: 2.5 nm 0 (2.5 nm)-2 s2
(sRg)2I(s)/I(0)
Prosaposin (Saposin-A) 2,2-didecylpropane-1,3-bis-β-D-maltopyranoside Kratky plot 1.104 0 √3 sRg

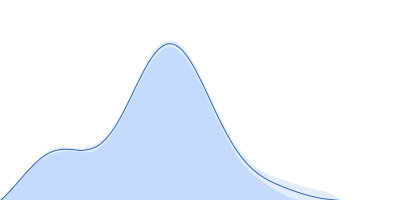

p(r)
Prosaposin (Saposin-A) 2,2-didecylpropane-1,3-bis-β-D-maltopyranoside pair distance distribution function Rg: 2.4 nm 0 Dmax: 7.0 nm

Data validation

There are no models related to this curve.

Synchrotron SAXS data from solutions of saposin-A plus LMNG in 25 mM Tris-HCl, 150 mM NaCl, pH 7.5 were collected on the 12ID-B SAXS/WAXS beam line at the Advanced Photon Source (APS), Argonne National Laboratory (Lemont, IL, USA) using a Pilatus 2M detector at a wavelength of λ = 0.0932 nm (I(s) vs s, where s = 4πsinθ/λ, and 2θ is the scattering angle). In-line size-exclusion chromatography (SEC) SAS was employed. The SEC parameters were as follows: A 100.00 μl sample at 7 mg/ml was injected at a 0.20 ml/min flow rate onto a GE Superdex 75 Increase 5/150 column at 25°C. 526 successive 1 second frames were collected. The data were normalized to the intensity of the transmitted beam and radially averaged; the scattering of the solvent-blank was subtracted.

Sample detector distance = UNKNOWN

Prosaposin (Saposin-A) (Sap-A)
Mol. type   Protein
Organism   Homo sapiens
Olig. state   Dimer
Mon. MW   9.5 kDa
Sequence   FASTA

2,2-didecylpropane-1,3-bis-β-D-maltopyranoside (LMNG)
Mol. type   Other
Olig. state   0
Mon. MW   1.0 kDa
Chemical formula
