SASDJS6 – Collagenase H C-terminal non-catalytic segments Polycystic Kidney disease domain 2 (PKD2) and Collagen binding domain (CBD) bound to triple helical collagen like-peptide [(POG)10]3

MWexperimental 39 kDa MWexpected 33 kDa VPorod 41 nm3 log I(s) 3.87×101 3.87×100 3.87×10-1 3.87×10-2  s, nm-1 Log plot Log-Log plot

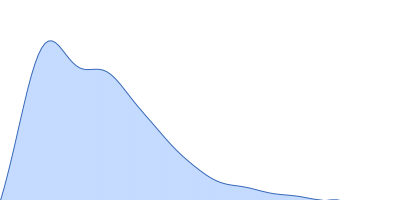

ln I(s) ln 3.87×101 Rg: 3.5 nm 0 (3.5 nm)-2 s2 (sRg)2I(s)/I(0) 1.104 0 √3 sRg p(r) Rg: 3.5 nm 0 Dmax: 14.5 nm

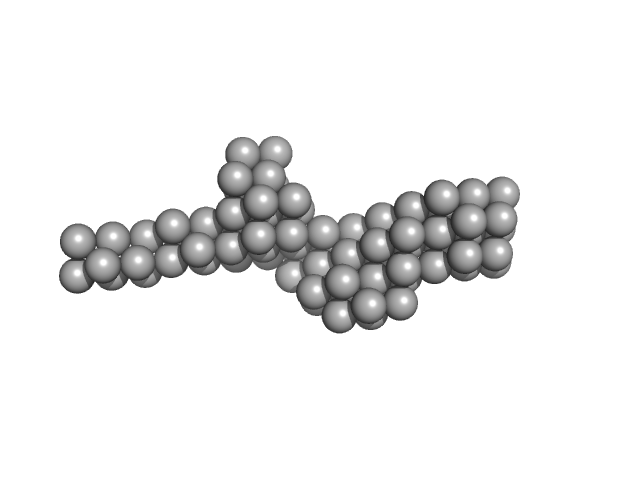

Fits and models

---

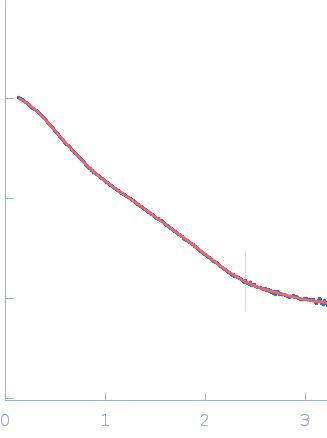

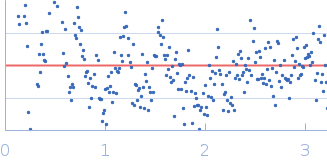

log I(s)  s, nm-1 +3 Δ/σ -3  s, nm-1 Fit validation Metric Value pcormap χ² 0 10.206 Worse Better

---

Synchrotron SAXS data from solutions of Collagenase H C-terminal non-catalytic segments Polycystic Kidney disease domain 2 (PKD2) and Collagen binding domain (CBD) bound to triple helical collagen like-peptide [(POG)10]3 in 50 mM HEPES, 100 mM NaCl, 5 mM CaCl2, pH 7.5 were collected on the 12.3.1 (SIBYLS) beam line at the Advanced Light Source (ALS) storage ring (Berkeley, CA, USA) using a Pilatus3 X 2M detector at a sample-detector distance of 1.5 m and at a wavelength of λ = 0.1127 nm (I(s) vs s, where s = 4πsinθ/λ, and 2θ is the scattering angle). Solute concentrations ranging between 4 and 6 mg/ml were measured at 10°C. 50 successive 0.300 second frames were collected. The data were normalized to the intensity of the transmitted beam and radially averaged; the scattering of the solvent-blank was subtracted. The low angle data collected at lower concentrations were extrapolated to infinite dilution and merged with the higher concentration data to yield the final composite scattering curve. Storage temperature = UNKNOWN

Collagenous Peptide model [(PPG)10] Mol. type   Protein Organism   synthetic construct Olig. state   Trimer Mon. MW   3.1 kDa Sequence   FASTA   Collagenase ColH (Polycystic kidney disease domain 2 (PKD2) and Collagen binding domain (CBD)) (ColH) Mol. type   Protein Organism   Hathewaya histolytica Olig. state   Monomer Mon. MW   23.4 kDa   UniProt   Q46085 (811-1021) Sequence   FASTA
