Interdomain linkers tailor the stability of immunoglobulin repeats in polyproteins.

Joshi T, Garg S, Estaña A, Cortés J, Bernadó P, Das S, Kammath AR, Sagar A, Rakshit S, Biochem Biophys Res Commun 550:43-48 (2021) Europe PMC

SASDKB2 – Two titin I27 domains linked with RS linker

Two titin I27 domains linked with RS linker
MWexperimental 33 kDa
MWexpected 23 kDa
log I(s) 4.05×10-2 4.05×10-3 4.05×10-4 4.05×10-5
Two titin I27 domains linked with RS linker small angle scattering data  s, nm-1
ln I(s)
Two titin I27 domains linked with RS linker Guinier plot ln 4.06×10-2 Rg: 3.0 nm 0 (3.0 nm)-2 s2
(sRg)2I(s)/I(0)

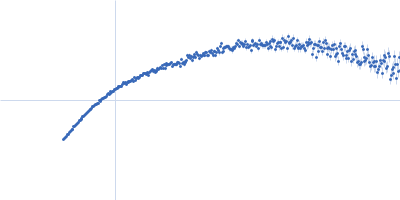

Two titin I27 domains linked with RS linker Kratky plot 1.104 0 √3 sRg

Data validation

Fits and models

log I(s)
 s, nm-1
Synchrotron SAXS data from solutions of Two titin I27 domains linked with RS linker in 50 mM potassium phosphate, 300 mM KCl, DTT 2mM, pH 7.6 were collected on the SWING beam line at the SOLEIL storage ring (Saint-Aubin, France) using a Eiger 4M detector at a sample-detector distance of 2 m and at a wavelength of λ = 0.1033 nm (I(s) vs s, where s = 4πsinθ/λ, and 2θ is the scattering angle). One solute concentration of 2.00 mg/ml was measured at 10°C. 40 successive 0.900 second frames were collected. The data were normalized to the intensity of the transmitted beam and radially averaged; the scattering of the solvent-blank was subtracted.

SAXS data collected on two I27 domains linked with RS linker

Two titin I27 domains linked with RS linker (I27-(RS)-RS)
Mol. type   Protein
Olig. state   Monomer
Mon. MW   23.2 kDa

UniProt   Q8WZ42
Sequence   FASTA
