Wide-Angle X-ray Scattering (WAXS) Analysis of Small Nucleic Acids

Yen-Lin Chen.

SASDKL5 – RNA Short Tetraloop Hairpin Triplex

RNA Short Tetraloop Hairpin Triplex
MWexperimental 17 kDa
MWexpected 17 kDa
log I(s) 6.65×101 6.65×100 6.65×10-1 6.65×10-2
RNA Short Tetraloop Hairpin Triplex small angle scattering data  s, nm-1
ln I(s)
RNA Short Tetraloop Hairpin Triplex Guinier plot ln 6.65×101 Rg: 2.0 nm 0 (2.0 nm)-2 s2
(sRg)2I(s)/I(0)
RNA Short Tetraloop Hairpin Triplex Kratky plot 1.104 0 √3 sRg
p(r)

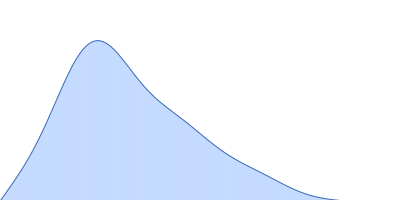

RNA Short Tetraloop Hairpin Triplex pair distance distribution function Rg: 1.9 nm 0 Dmax: 6.3 nm

Data validation

There are no models related to this curve.

Synchrotron SAXS data from solutions of RNA Short Tetraloop Hairpin Triplex in 200mM NaCl, 1.0mM MgCl2, 20mM Na-MES, 50µM EDTA, pH 5.5 were collected on the 16-ID (LiX) beam line at the National Synchrotron Light Source II (NSLS-II) storage ring (Upton, NY, USA) using a Pilatus3 S 1M detector at a sample-detector distance of 3 m and at a wavelength of λ = 0.092 nm (I(s) vs s, where s = 4πsinθ/λ, and 2θ is the scattering angle). One solute concentration of 2.60 mg/ml was measured at 10°C. 15 successive 1 second frames were collected. The data were normalized to the intensity of the transmitted beam and radially averaged; the scattering of the solvent-blank was subtracted.

RNA Short Tetraloop Hairpin Triplex (tsRNA)
Mol. type   RNA
Olig. state   Monomer
Mon. MW   16.5 kDa
Sequence   FASTA
