Mycobacterium tuberculosis Rv2324 is a multifunctional feast/famine regulatory protein involved in growth, DNA replication and damage control.

Dubey S, Maurya RK, Shree S, Kumar S, Jahan F, Krishnan MY, Ramachandran R, Int J Biol Macromol 252:126459 (2023) Europe PMC

SASDKP7 – Probable transcriptional regulatory protein Lrp/AsnC protein Rv2324

Probable transcriptional regulatory protein (Probably AsnC-family)
MWexperimental 39 kDa
MWexpected 36 kDa
VPorod 156 nm3
log I(s) 3.00×104 3.00×103 3.00×102 3.00×101
Probable transcriptional regulatory protein (Probably AsnC-family) small angle scattering data  s, nm-1
ln I(s)

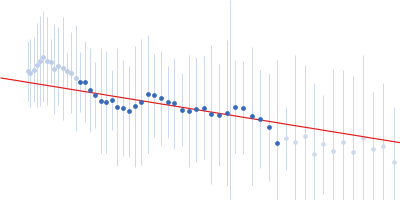

Probable transcriptional regulatory protein (Probably AsnC-family) Guinier plot ln 3.00×104 Rg: 2.7 nm 0 (2.7 nm)-2 s2
(sRg)2I(s)/I(0)

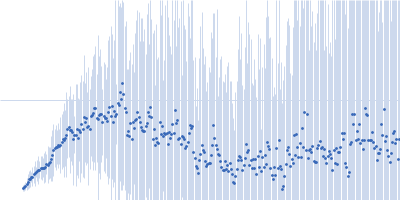

Probable transcriptional regulatory protein (Probably AsnC-family) Kratky plot 1.104 0 √3 sRg
p(r)

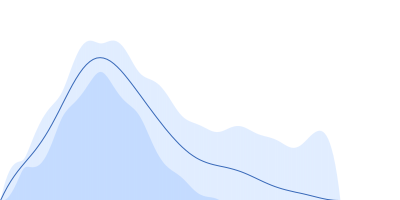

Probable transcriptional regulatory protein (Probably AsnC-family) pair distance distribution function Rg: 3.3 nm 0 Dmax: 11.6 nm

Data validation

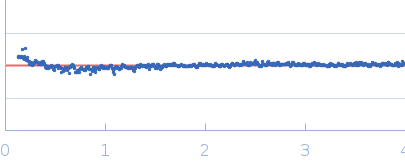

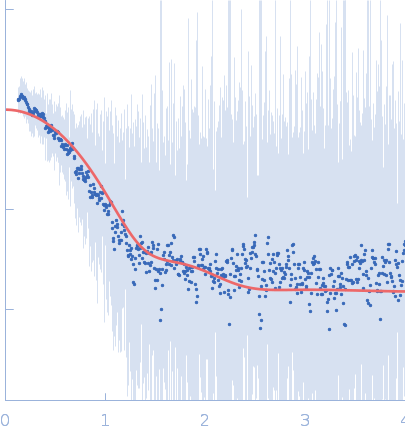

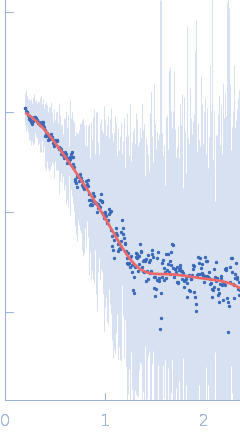

Fits and models

log I(s)
 s, nm-1

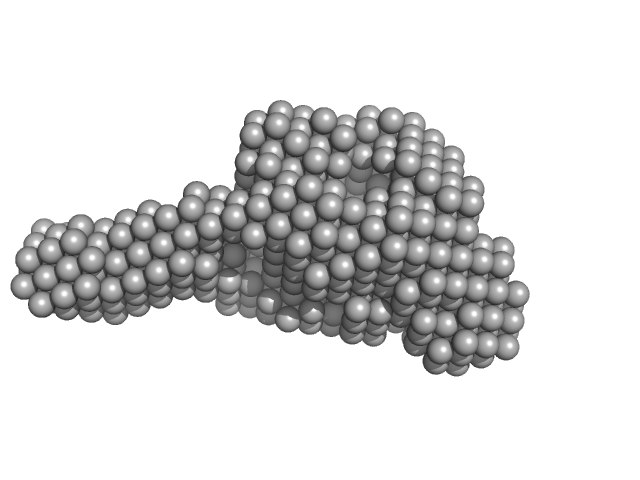

Probable transcriptional regulatory protein (Probably AsnC-family) DAMMIF model
Probable transcriptional regulatory protein (Probably AsnC-family) DAMFILT model
log I(s)
 s, nm-1

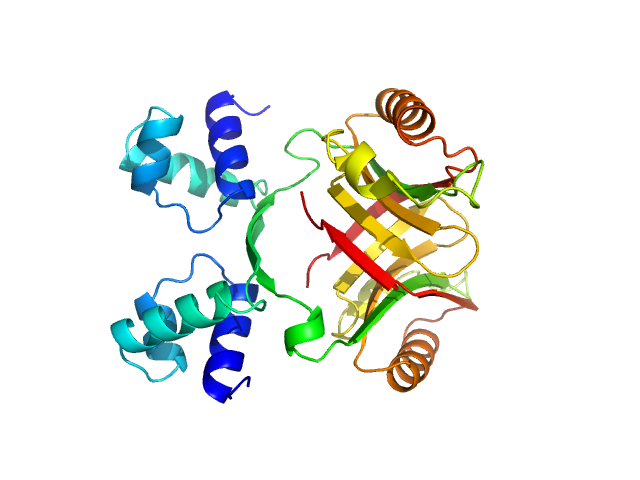

Probable transcriptional regulatory protein (Probably AsnC-family) CHIMERA model
SAXS data from solutions of the probable transcriptional regulatory protein Lrp/AsnC protein Rv2324 in 20 mM Tris, 150 mM NaCl, 2 mM EDTA, pH 7.5 were collected using an Anton Paar SAXSpace instrument at the CSIR-Central Drug Research Institute (Lucknow, India) using a Dectris Mythen 2R1K detector at a sample-detector distance of 0.3 m and at a wavelength of λ = 0.154 nm (I(s) vs s, where s = 4πsinθ/λ, and 2θ is the scattering angle). One solute concentration of 7.20 mg/ml was measured at 10°C. Two successive 1800 second frames were collected. The data were normalized to the intensity of the transmitted beam and radially averaged; the scattering of the solvent-blank was subtracted.

CAUTION! The errors on the scattering intensities are not specified correctly and are severely over estimated. CAUTION! A non-linear/poorly defined Guinier region is noted (lnI(s) vs s^2 for sRg<1.3). CAUTION! Possible aggregation. CAUTION! The Porod volume (156 nm^3) is inconsistent for a 36 kDa protein (expected Porod volume = ca. 60 nm^3). CAUTION! The atomistic model (bottom) does not fit the data. CAUTION! The atomistic model is missing the C-terminal histidine tag that is present in the SAXS sample construct.

Probable transcriptional regulatory protein (Probably AsnC-family) (Lrp/AsnC)
Mol. type   Protein
Organism   Mycobacterium tuberculosis (strain ATCC 25618 / H37Rv)
Olig. state   Dimer
Mon. MW   17.9 kDa

UniProt   P71888 (1-148)
Sequence   FASTA
