Rational thermostabilisation of four-helix bundle dimeric de novo proteins.

Irumagawa S, Kobayashi K, Saito Y, Miyata T, Umetsu M, Kameda T, Arai R, Sci Rep 11(1):7526 (2021) Europe PMC

SASDKP8 – Rationally optimised WA20 (ROWA) hexamer

Rationally optimised WA20 mutant N22A/H86K (ROWA) hexamer
MWI(0) 67 kDa
MWexpected 75 kDa
VPorod 120 nm3
log I(s) 5.02×10-2 5.02×10-3 5.02×10-4 5.02×10-5
Rationally optimised WA20 mutant N22A/H86K (ROWA) hexamer small angle scattering data  s, nm-1
ln I(s)

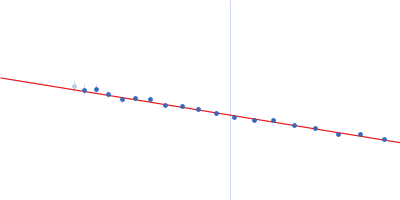

Rationally optimised WA20 mutant N22A/H86K (ROWA) hexamer Guinier plot ln 5.03×10-2 Rg: 5.3 nm 0 (5.3 nm)-2 s2
(sRg)2I(s)/I(0)

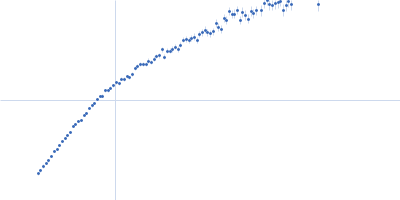

Rationally optimised WA20 mutant N22A/H86K (ROWA) hexamer Kratky plot 1.104 0 √3 sRg
p(r)

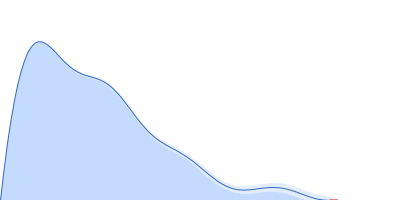

Rationally optimised WA20 mutant N22A/H86K (ROWA) hexamer pair distance distribution function Rg: 5.9 nm 0 Dmax: 24.8 nm

Data validation

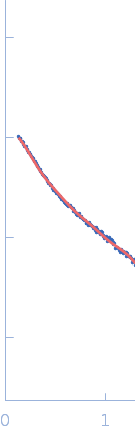

Fits and models

log I(s)
 s, nm-1
Rationally optimised WA20 mutant N22A/H86K (ROWA) hexamer DAMMIN model
Synchrotron SAXS data from solutions of Rationally optimised WA20 (ROWA) hexamer in 20 mM HEPES, 150 mM NaCl, 5% glycerol,, pH 7.5 were collected on the BL-10C beam line at the Photon Factory (PF), High Energy Accelerator Research Organization (KEK) storage ring (Tsukuba, Japan) using a Pilatus3 2M detector at a sample-detector distance of 1.1 m and at a wavelength of λ = 0.13 nm (I(s) vs s, where s = 4πsinθ/λ, and 2θ is the scattering angle). One solute concentration of 1.25 mg/ml was measured at 20°C. 30 successive 5 second frames were collected. The data were normalized to the intensity of the transmitted beam and radially averaged; the scattering of the solvent-blank was subtracted.

Storage temperature = UNKNOWN

Rationally optimised WA20 mutant N22A/H86K (ROWA) hexamer (ROWA hexamer)
Mol. type   Protein
Organism   Artificial protein (de novo protein)
Olig. state   Hexamer
Mon. MW   12.5 kDa
Sequence   FASTA
