Human myelin protein P2: from crystallography to time-lapse membrane imaging and neuropathy-associated variants.

Uusitalo M, Klenow MB, Laulumaa S, Blakeley MP, Simonsen AC, Ruskamo S, Kursula P, FEBS J (2021) Europe PMC

SASDLC5 – CMT mutant M114T of human myelin protein P2

Human P2 M114T mutant
MWexperimental 12 kDa
MWexpected 15 kDa
VPorod 16 nm3
log I(s) 3.61×10-2 3.61×10-3 3.61×10-4 3.61×10-5
Human P2 M114T mutant small angle scattering data  s, nm-1
ln I(s)

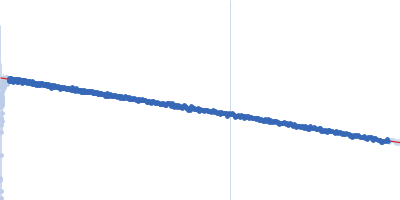

Human P2 M114T mutant Guinier plot ln 3.62×10-2 Rg: 1.5 nm 0 (1.5 nm)-2 s2
(sRg)2I(s)/I(0)

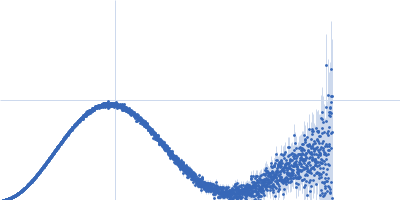

Human P2 M114T mutant Kratky plot 1.104 0 √3 sRg
p(r)

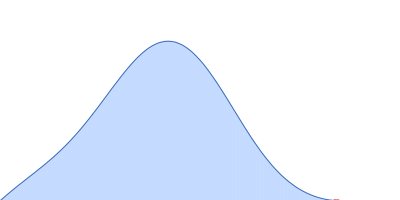

Human P2 M114T mutant pair distance distribution function Rg: 1.5 nm 0 Dmax: 4.0 nm

Data validation

Fits and models

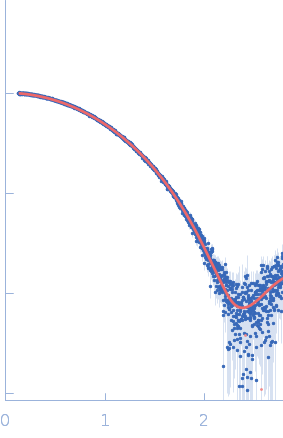

log I(s)
 s, nm-1
Human P2 M114T mutant DAMMIN model
Synchrotron SAXS data from solutions of CMT mutant M114T of human myelin protein P2 in 20 mM HEPES, 300 mM NaCl, 1 mM DTT, pH 7.5 were collected on the B21 beam line at the Diamond Light Source (Didcot, UK) using a Eiger 4M detector at a wavelength of λ = 0.095 nm (I(s) vs s, where s = 4πsinθ/λ, and 2θ is the scattering angle). In-line size-exclusion chromatography (SEC) SAS was employed. The SEC parameters were as follows: A sample at 10.5 mg/ml was injected at a 0.075 ml/min flow rate onto a GE Superdex 200 Increase 3.2/300 column at 20°C. 29 successive 3 second frames were collected through the SEC peak. The data were normalized to the intensity of the transmitted beam and radially averaged; the scattering of the solvent-blank was subtracted.

Storage temperature = UNKNOWN. Sample detector distance = UNKNOWN. Sample injection volume = UNKNOWN

Human P2 M114T mutant
Mol. type   Protein
Olig. state   Monomer
Mon. MW   14.9 kDa
Sequence   FASTA
