Massively parallel, computationally guided design of a proenzyme.

Yachnin BJ, Azouz LR, White RE 3rd, Minetti CASA, Remeta DP, Tan VM, Drake JM, Khare SD, Proc Natl Acad Sci U S A 119(15):e2116097119 (2022) Europe PMC

SASDLH2 – Pro-CPG2-2 (pro-enzyme design 2 of circular permutant Carboxypeptidase G2-CP-N89-K177A)

Pro-Carboxypeptidase G2 (circular permutant CP-N89) K177A Design 2
MWexperimental 100 kDa
MWexpected 100 kDa
VPorod 126 nm3
log I(s) 6.66×102 6.66×101 6.66×100 6.66×10-1
Pro-Carboxypeptidase G2 (circular permutant CP-N89) K177A Design 2 small angle scattering data  s, nm-1
ln I(s)

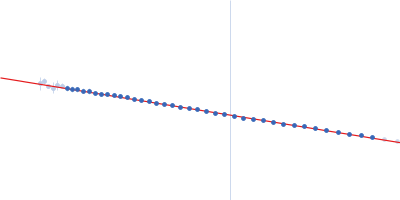

Pro-Carboxypeptidase G2 (circular permutant CP-N89) K177A Design 2 Guinier plot ln 6.66×102 Rg: 3.7 nm 0 (3.7 nm)-2 s2
(sRg)2I(s)/I(0)

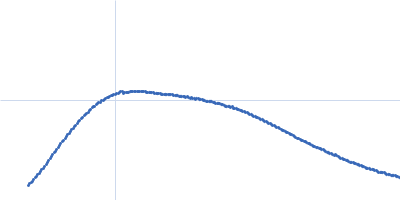

Pro-Carboxypeptidase G2 (circular permutant CP-N89) K177A Design 2 Kratky plot 1.104 0 3 sRg

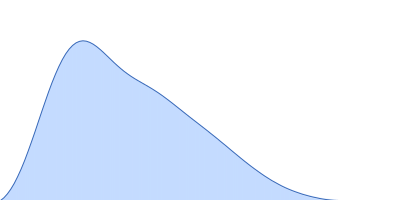

p(r)
Pro-Carboxypeptidase G2 (circular permutant CP-N89) K177A Design 2 pair distance distribution function Rg: 3.7 nm 0 Dmax: 12.5 nm

Data validation

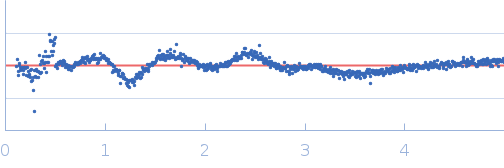

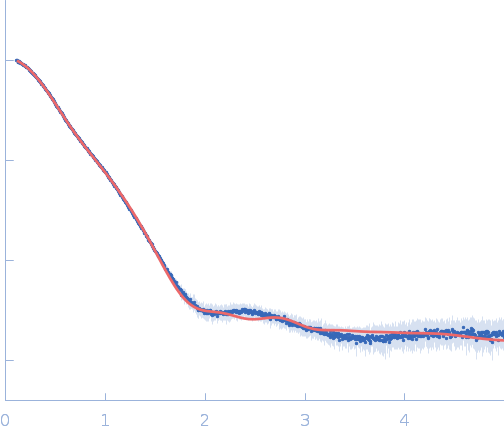

Fits and models


log I(s)
 s, nm-1

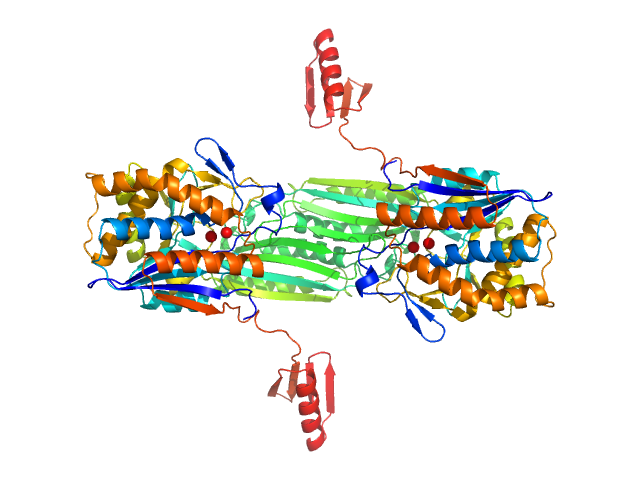

Pro-Carboxypeptidase G2 (circular permutant CP-N89) K177A Design 2 ROSETTA model
Pro-Carboxypeptidase G2 (circular permutant CP-N89) K177A Design 2 ROSETTA model

Synchrotron SAXS data from solutions of Pro-CPG2-2 (pro-enzyme design 2 of circular permutant Carboxypeptidase G2-CP-N89-K177A) in 50 mM Tris, 100 mM NaCl, pH 7.4 were collected on the 12.3.1 (SIBYLS) beam line at the Advanced Light Source (ALS) storage ring (Berkeley, CA, USA) using a Pilatus3 X 2M detector (I(s) vs s, where s = 4πsinθ/λ, and 2θ is the scattering angle). Solute concentrations ranging between 2 and 10 mg/ml were measured at 10°C. 32 successive 0.300 second frames were collected. The data were normalized to the intensity of the transmitted beam and radially averaged; the scattering of the solvent-blank was subtracted. The low angle data collected at lower concentration were merged with the highest concentration high angle data to yield the final composite scattering curve.

Merged SAXS scattering curve of the Pro-CPG2-2 pro-enzyme design of CP-N89 circular permutant of carboxypeptidase G2 with the K177A (wild-type residue numbering) mutation. X-ray wavelength: UNKNOWN.

Pro-Carboxypeptidase G2 (circular permutant CP-N89) K177A Design 2 (Pro-CPG2-2)
Mol. type   Protein
Organism   Pseudomonas sp. (strain RS-16)
Olig. state   Dimer
Mon. MW   50.1 kDa

UniProt   P06621 (89-415)
Sequence   FASTA

PDB ID   1CG2

PDB ID   1CG2
