Massively parallel, computationally guided design of a proenzyme.

Yachnin BJ, Azouz LR, White RE 3rd, Minetti CASA, Remeta DP, Tan VM, Drake JM, Khare SD, Proc Natl Acad Sci U S A 119(15):e2116097119 (2022) Europe PMC

SASDLL2 – Pro-CPG2-3 (pro-enzyme design 3 of circular permutant Carboxypeptidase G2-CP-N89-K177A) with Methotrexate

Methotrexate
Pro-Carboxypeptidase G2 (circular permutant CP-N89) K177A Design 3
MWexperimental 100 kDa
MWexpected 101 kDa
VPorod 125 nm3
log I(s) 2.59×102 2.59×101 2.59×100 2.59×10-1
Methotrexate Pro-Carboxypeptidase G2 (circular permutant CP-N89) K177A Design 3 small angle scattering data  s, nm-1
ln I(s)

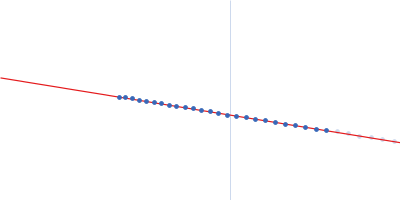

Methotrexate Pro-Carboxypeptidase G2 (circular permutant CP-N89) K177A Design 3 Guinier plot ln 2.59×102 Rg: 3.5 nm 0 (3.5 nm)-2 s2
(sRg)2I(s)/I(0)

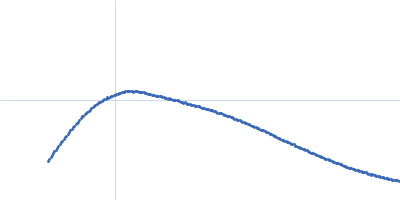

Methotrexate Pro-Carboxypeptidase G2 (circular permutant CP-N89) K177A Design 3 Kratky plot 1.104 0 3 sRg
p(r)

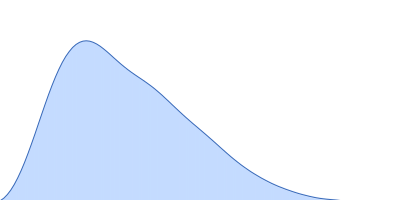

Methotrexate Pro-Carboxypeptidase G2 (circular permutant CP-N89) K177A Design 3 pair distance distribution function Rg: 3.6 nm 0 Dmax: 12.3 nm

Data validation

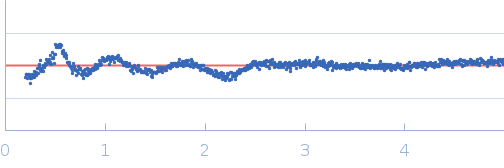

Fits and models

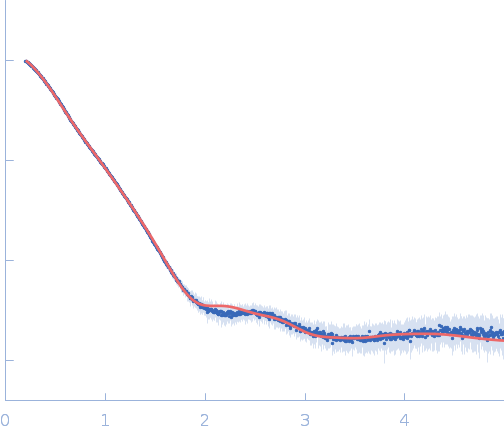

log I(s)
 s, nm-1

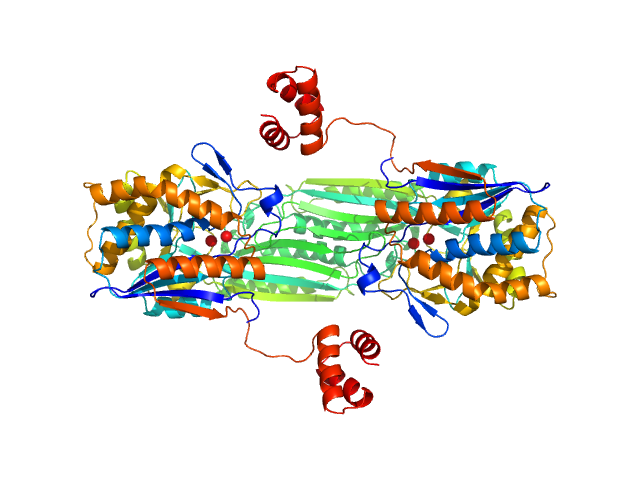

Methotrexate Pro-Carboxypeptidase G2 (circular permutant CP-N89) K177A Design 3 ROSETTA model
Methotrexate Pro-Carboxypeptidase G2 (circular permutant CP-N89) K177A Design 3 ROSETTA model

Synchrotron SAXS data from solutions of Pro-CPG2-3 (pro-enzyme design 3 of circular permutant Carboxypeptidase G2-CP-N89-K177A) with Methotrexate in 50 mM Tris, 100 mM NaCl, pH 7.4 were collected on the 12.3.1 (SIBYLS) beam line at the Advanced Light Source (ALS) storage ring (Berkeley, CA, USA) using a Pilatus3 X 2M detector (I(s) vs s, where s = 4πsinθ/λ, and 2θ is the scattering angle). Solute concentrations ranging between 2 and 10 mg/ml were measured at 10°C. 32 successive 0.300 second frames were collected. The data were normalized to the intensity of the transmitted beam and radially averaged; the scattering of the solvent-blank was subtracted. The low angle data collected at lower concentration were merged with the highest concentration high angle data to yield the final composite scattering curve.

Merged SAXS scattering curve of the Pro-CPG2-3 pro-enzyme design of CP-N89 circular permutant of carboxypeptidase G2 with the K177A (wild-type residue numbering) mutation in the presence of methotrexate. (Methotrexate is expected to have been converted to its cleaved form prior to data collection.) X-ray wavelength: UNKNOWN.

Methotrexate (MTX)
Mol. type   Other
Olig. state   Dimer
Mon. MW   0.5 kDa
Chemical formula

Pro-Carboxypeptidase G2 (circular permutant CP-N89) K177A Design 3 (Pro-CPG2-3)
Mol. type   Protein
Organism   Pseudomonas sp. (strain RS-16)
Olig. state   Dimer
Mon. MW   50.0 kDa

UniProt   P06621 (89-415)
Sequence   FASTA

PDB ID   1CG2

PDB ID   1CG2
