Hydrolytically degradable polymer micelles for drug delivery: a SAXS/SANS kinetic study.

Filippov SK, Franklin JM, Konarev PV, Chytil P, Etrych T, Bogomolova A, Dyakonova M, Papadakis CM, Radulescu A, Ulbrich K, Stepanek P, Svergun DI, Biomacromolecules 14(11):4061-70 (2013) Europe PMC

SASDM33 – Hydrolytically Degradable Polymer Micelles for Drug Delivery (structure of hydrophobic substituent - cholest-4-en-3-one) with Dox (10%)

Hydrolytically Degradable Polymer Micelles for Drug Delivery (structure of hydrophobic substituent - cholest-4-en-3-one) with Dox (10%)
MWexperimental 134 kDa
MWexpected 125 kDa
log I(s) 6.10×101 6.10×100 6.10×10-1 6.10×10-2
Hydrolytically Degradable Polymer Micelles for Drug Delivery (structure of hydrophobic substituent - cholest-4-en-3-one) with Dox (10%) small angle scattering data  s, nm-1

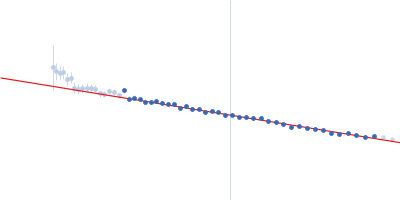

ln I(s)
Hydrolytically Degradable Polymer Micelles for Drug Delivery (structure of hydrophobic substituent - cholest-4-en-3-one) with Dox (10%) Guinier plot ln 6.10×101 Rg: 5.5 nm 0 (5.5 nm)-2 s2

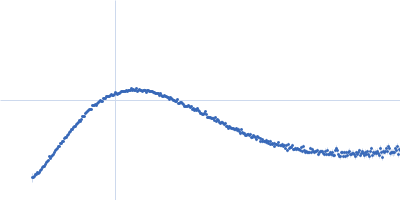

(sRg)2I(s)/I(0)
Hydrolytically Degradable Polymer Micelles for Drug Delivery (structure of hydrophobic substituent - cholest-4-en-3-one) with Dox (10%) Kratky plot 1.104 0 √3 sRg
p(r)
Hydrolytically Degradable Polymer Micelles for Drug Delivery (structure of hydrophobic substituent - cholest-4-en-3-one) with Dox (10%) pair distance distribution function Rg: 5.5 nm 0 Dmax: 18.3 nm

Data validation

Fits and models

log I(s)
 s, nm-1
Hydrolytically Degradable Polymer Micelles for Drug Delivery (structure of hydrophobic substituent - cholest-4-en-3-one) with Dox (10%) DAMMIF model
Synchrotron SAXS data from solutions of Hydrolytically Degradable Polymer Micelles for Drug Delivery (structure of hydrophobic substituent - cholest-4-en-3-one) with Dox (10%) in phosphate buffer saline (PBS) (pH 5.0), pH 5 were collected on the EMBL X33 beam line at the DORIS III, DESY storage ring (Hamburg, Germany) using a Pilatus 1M-W detector at a sample-detector distance of 2.7 m and at a wavelength of λ = 0.154 nm (I(s) vs s, where s = 4πsinθ/λ, and 2θ is the scattering angle). One solute concentration of 10.00 mg/ml was measured at 20°C. Eight successive 15 second frames were collected. The data were normalized to the intensity of the transmitted beam and radially averaged; the scattering of the solvent-blank was subtracted.

Tags: X33
Hydrolytically Degradable Polymer Micelles for Drug Delivery (structure of hydrophobic substituent - cholest-4-en-3-one) with Dox (10%) (IV-DOX)
Mol. type   Other
Olig. state   Monomer
Mon. MW   125 kDa
Chemical formula
