Coat Protein-Dependent Behavior of Poly(ethylene glycol) Tails in Iron Oxide Core Virus-like Nanoparticles.

Malyutin AG, Cheng H, Sanchez-Felix OR, Carlson K, Stein BD, Konarev PV, Svergun DI, Dragnea B, Bronstein LM, ACS Appl Mater Interfaces 7(22):12089-98 (2015) Europe PMC

SASDM69 – Hepatitis B virus (HBV)

Hepatitis B virus (HBV)
MWexperimental 5000 kDa
log I(s) 1.00×103 1.00×102 1.00×101 1.00×100
Hepatitis B virus (HBV) small angle scattering data  s, nm-1
(sRg)2I(s)/I(0)
Hepatitis B virus (HBV) Kratky plot 1.104 0 3 sRg

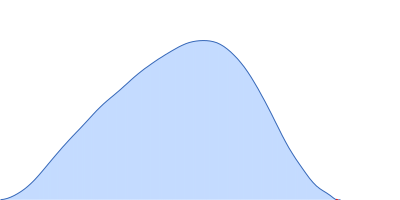

p(r)
Hepatitis B virus (HBV) pair distance distribution function Rg: 12.7 nm 0 Dmax: 32 nm

Data validation


There are no models related to this curve.

Synchrotron SAXS data from solutions of Hepatitis B virus (HBV) in 0.5 M LiCl, 50 mM HEPES, 2 mM DTT, pH 7.5, were collected on the EMBL X33 beam line at DORIS III (DESY, Hamburg, Germany) using a Pilatus 1M-W detector at a sample-detector distance of 2.9 m and at a wavelength of λ = 0.15 nm (I(s) vs s, where s = 4πsinθ/λ, and 2θ is the scattering angle). One solute concentration of 2.00 mg/ml was measured at 10°C. Eight successive 15 second frames were collected. The data were normalized to the intensity of the transmitted beam and radially averaged; the scattering of the solvent-blank was subtracted.

The data have been scaled for display purposes (original data available in the entry archive.)

Tags: X33
Hepatitis B virus (HBV) (HBV)
Mol. type   Other
Mon. MW   5000.0 kDa
Chemical formula
