NMR-derived secondary structure of the full-length Ox40 mRNA 3'UTR and its multivalent binding to the immunoregulatory RBP Roquin.

Tants JN, Becker LM, McNicoll F, Müller-McNicoll M, Schlundt A, Nucleic Acids Res (2022) Europe PMC

SASDNC6 – Ox40 RNA (untranslated region, UTR), alternative decay element (ADEshort)

Ox40 3 UTR ADEshort
MWexperimental 7 kDa
MWexpected 7 kDa
VPorod 12 nm3
log I(s) 3.91×103 3.91×102 3.91×101 3.91×100
Ox40 3 UTR ADEshort small angle scattering data  s, nm-1
ln I(s)

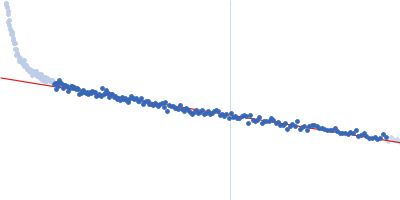

Ox40 3 UTR ADEshort Guinier plot ln 3.92×103 Rg: 1.7 nm 0 (1.7 nm)-2 s2
(sRg)2I(s)/I(0)
Ox40 3 UTR ADEshort Kratky plot 1.104 0 √3 sRg
Dmax: 9 nm

Data validation

There are no models related to this curve.

Synchrotron SAXS data from solutions of Ox40 RNA (untranslated region, UTR), alternative decay element (ADEshort) in 50 mM KCl, 25 mM sodium phosphate, pH 7 were collected on the EMBL P12 beam line at the PETRA III storage ring (DESY; Hamburg, Germany) using a Pilatus 6M detector at a sample-detector distance of 3 m and at a wavelength of λ = 0.124 nm (I(s) vs s, where s = 4πsinθ/λ, and 2θ is the scattering angle). One solute concentration of 0.76 mg/ml was measured at 20°C. 18 successive 0.095 second frames were collected. The data were normalized to the intensity of the transmitted beam and radially averaged; the scattering of the solvent-blank was subtracted.

Possibly aggregated.

Ox40 3 UTR ADEshort
Mol. type   RNA
Organism   Mus musculus
Olig. state   Monomer
Mon. MW   7.1 kDa
Sequence   FASTA
