Solution structure of the type I polyketide synthase Pks13 from Mycobacterium tuberculosis.

Bon C, Cabantous S, Julien S, Guillet V, Chalut C, Rima J, Brison Y, Malaga W, Sanchez-Dafun A, Gavalda S, Quémard A, Marcoux J, Waldo GS, Guilhot C, Mourey L, BMC Biol 20(1):147 (2022) Europe PMC

SASDNM9 – Thioesterase domain of polyketide synthase Pks13 at neutral pH

Polyketide synthase Pks13
MWI(0) 27 kDa
MWexpected 33 kDa
VPorod 56 nm3
log I(s) 7.29×105 7.29×104 7.29×103 7.29×102
Polyketide synthase Pks13 small angle scattering data  s, nm-1
ln I(s)

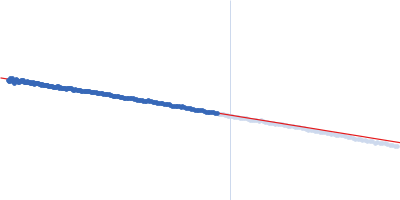

Polyketide synthase Pks13 Guinier plot ln 7.29×105 Rg: 1.9 nm 0 (1.9 nm)-2 s2
(sRg)2I(s)/I(0)

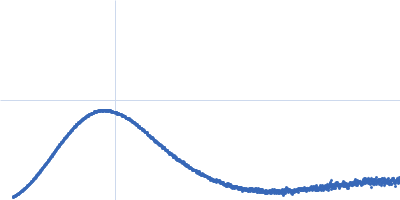

Polyketide synthase Pks13 Kratky plot 1.104 0 √3 sRg
p(r)

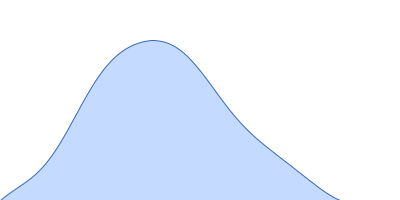

Polyketide synthase Pks13 pair distance distribution function Rg: 2.0 nm 0 Dmax: 5.5 nm

Data validation

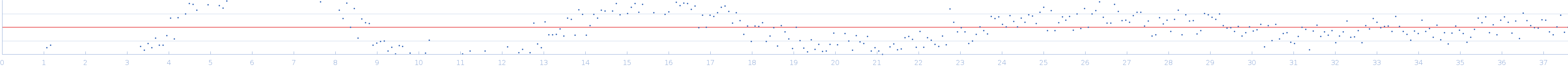

Fits and models

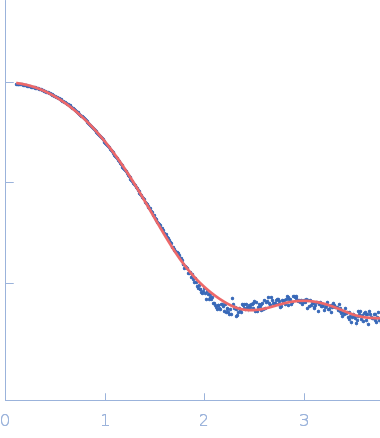

log I(s)
 s, nm-1
Polyketide synthase Pks13 DAMMIN model
Synchrotron SAXS data from solutions of the thioesterase domain of polyketide synthase Pks13 at neutral pH in 50 mM Tris-HCl, 50 mM NaCl, pH 8 were collected on the EMBL X33 beam line at the DORIS III storage ring (Hamburg, Germany) using a MAR 345 Image Plate detector at a sample-detector distance of 2.7 m and at a wavelength of λ = 0.15 nm (I(s) vs s, where s = 4πsinθ/λ, and 2θ is the scattering angle). One solute concentration of 10.30 mg/ml was measured at 12°C. The data were normalized to the intensity of the transmitted beam and radially averaged; the scattering of the solvent-blank was subtracted.

Number of frames = UNKNOWN

Tags: X33
Polyketide synthase Pks13 (fTE)
Mol. type   Protein
Organism   Mycobacterium tuberculosis (strain ATCC 25618 / H37Rv)
Olig. state   Monomer
Mon. MW   33.2 kDa

UniProt   I6X8D2 (1437-1725)
Sequence   FASTA
