| MWexperimental | 106 | kDa |
| MWexpected | 96 | kDa |
| VPorod | 180 | nm3 |
|
log I(s)
5.50×102
5.50×101
5.50×100
5.50×10-1
|
s, nm-1
|
The plant nucleoplasmin AtFKBP43 needs its extended arms for histone interaction.
Singh AK, Saharan K, Baral S, Vasudevan D, Biochim Biophys Acta Gene Regul Mech 1865(7):194872 (2022) Europe PMCSASDNT7 – Peptidyl-prolyl cis-trans isomerase AtFKBP43 (1-164)
Peptidyl-prolyl cis-trans isomerase FKBP43|
|
|

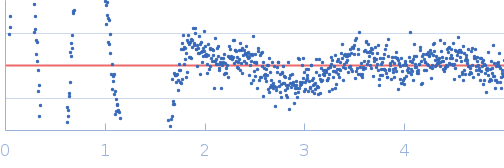

Fits and models
|
|
|
|
|
Synchrotron SAXS data from solutions of AtFKBP43 (1-164) in 20 mM Tris, 300 mM NaCl, 1 mM β-mercaptoethanol, pH 7.5 were collected on the BM29 beam line at the ESRF (Grenoble, France) using a Pilatus3 2M detector at a sample-detector distance of 2.9 m and at a wavelength of λ = 0.09794 nm (I(s) vs s, where s = 4πsinθ/λ, and 2θ is the scattering angle). One solute concentration of 0.50 mg/ml was measured at 20°C. The data were normalized to the intensity of the transmitted beam and radially averaged; the scattering of the solvent-blank was subtracted.
The bead models displayed in this entry show an individual DAMMIF model shape reconstruction and associated fit, in addition to the volume/bead occupancy-corrected averaged representation of the protein calculated from the spatial alignment of an individual model cohort consisting of several individual bead models (DAMFILT). |
|
|||||||||||||||||||||||||||
