Structural plasticity of NFU1 upon interaction with binding partners: insights into the mitochondrial [4Fe-4S] cluster pathway

Da Vela S, Saudino G, Lucarelli F, Banci L, Svergun D, Ciofi-Baffoni S, Journal of Molecular Biology :168154 (2023) DOI

SASDP98 – Human apo iron-sulfur cluster assembly 1 (ISCA1)

Iron-sulfur cluster assembly 1 homolog, mitochondrial
MWexperimental 15 kDa
MWexpected 14 kDa
VPorod 25 nm3
log I(s) 1.35×103 1.35×102 1.35×101 1.35×100

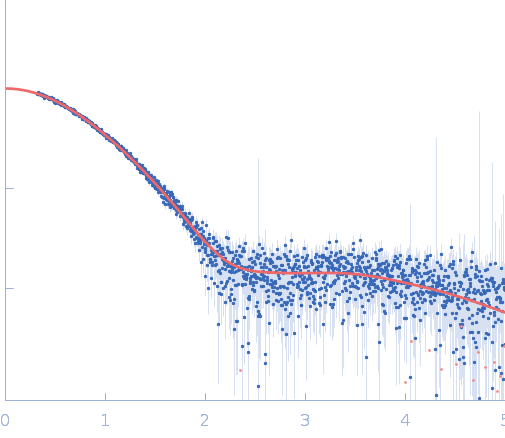

Iron-sulfur cluster assembly 1 homolog, mitochondrial small angle scattering data  s, nm-1
ln I(s)

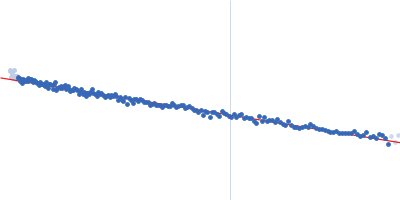

Iron-sulfur cluster assembly 1 homolog, mitochondrial Guinier plot ln 1.36×103 Rg: 1.9 nm 0 (1.9 nm)-2 s2
(sRg)2I(s)/I(0)

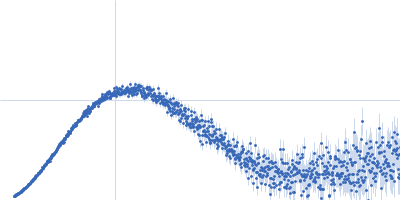

Iron-sulfur cluster assembly 1 homolog, mitochondrial Kratky plot 1.104 0 √3 sRg
p(r)

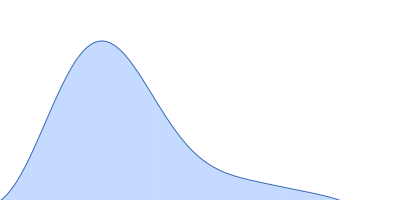

Iron-sulfur cluster assembly 1 homolog, mitochondrial pair distance distribution function Rg: 1.9 nm 0 Dmax: 6.8 nm

Data validation

Fits and models

log I(s)
 s, nm-1
Iron-sulfur cluster assembly 1 homolog, mitochondrial DAMMIF model
log I(s)
 s, nm-1
Iron-sulfur cluster assembly 1 homolog, mitochondrial CORAL model
Synchrotron SAXS data from solutions ISCA1 in 50 mM phosphate, 150 mM NaCl, 5 mM DTT, pH 7 were collected on the EMBL P12 beam line at PETRA III (DESY, Hamburg, Germany) using a Pilatus 6M detector at a sample-detector distance of 3.1 m and at a wavelength of λ = 0.124 nm (I(s) vs s, where s = 4πsinθ/λ, and 2θ is the scattering angle). In-line size-exclusion chromatography (SEC) SAS was employed. The SEC parameters were as follows: A 50.00 μl sample at 7.8 mg/ml was injected at a 0.30 ml/min flow rate onto a GE Superdex 75 Increase 5/150 column at 20°C. 900 successive 0.995 second frames were collected. The data were normalized to the intensity of the transmitted beam and radially averaged; the scattering of the solvent-blank was subtracted.

Iron-sulfur cluster assembly 1 homolog, mitochondrial (ISCA1)
Mol. type   Protein
Organism   Homo sapiens
Olig. state   Monomer
Mon. MW   14.2 kDa

UniProt   Q9BUE6 (1-129)
Sequence   FASTA
