| MWexperimental | 319 | kDa |
| MWexpected | 270 | kDa |
| VPorod | 451 | nm3 |
|
log I(s)
7.28×103
7.28×102
7.28×101
7.28×100
|
s, nm-1
|
Controlled modulation of the dynamics of the Deinococcus grandis Dps N-terminal tails by divalent metals.
Guerra JPL, Blanchet CE, Vieira BJC, Waerenborgh JC, Jones NC, Hoffmann SV, Pereira AS, Tavares P, Protein Sci :e4567 (2023) Europe PMCSASDQ35 – DNA-binding protein from starved cells: DgrDps-D43A mutant in 50 mM MOPS pH 7.0, 230 mM NaCl
DNA protection during starvation, DPS-D43A (Ferritin superfamily) dodecamer D43A mutation|
|
|

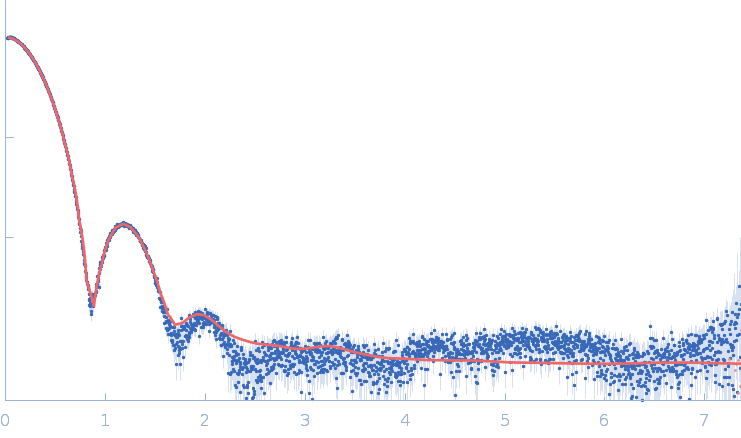

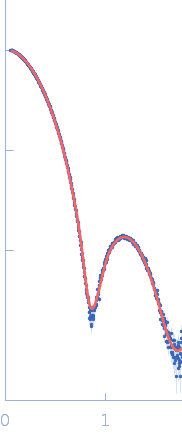

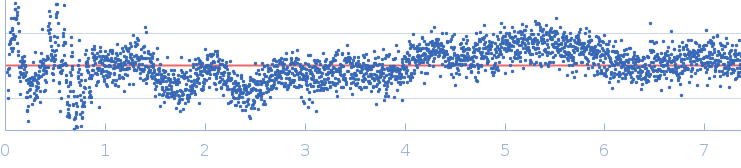

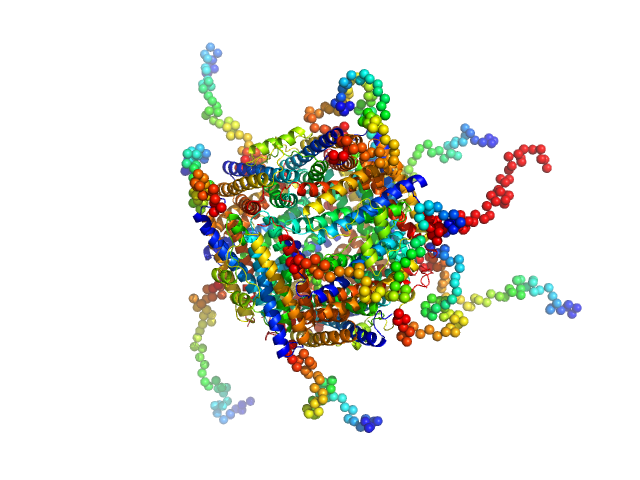

Fits and models
|
|
|
|
|
Synchrotron SAXS data from solutions of DgrDps-D43A mutant in 50 mM MOPS pH 7.0, 230 mM NaCl were collected on the EMBL P12 beam line at PETRA III (DESY, Hamburg, Germany) using a Pilatus 6M detector at a sample-detector distance of 6 m and at a wavelength of λ = 0.124 nm (I(s) vs s, where s = 4πsinθ/λ, and 2θ is the scattering angle). In-line size-exclusion chromatography (SEC) SAS was employed. The SEC parameters were as follows: A 50.00 μl sample at 10 mg/ml was injected at a 0.50 ml/min flow rate onto a GE Superdex 200 Increase 5/150 column at 25°C. 14 successive 1 second frames were collected. The data were normalized to the intensity of the transmitted beam and radially averaged; the scattering of the solvent-blank was subtracted.
The gene sequence used in this project was NCBI Reference Sequence: WP_058978256.1, which lacks the initial 10 amino acids of UniProt sequence A0A100HLL5, hence the abbreviation D34A used in the manuscript. https://www.ncbi.nlm.nih.gov/protein/WP_058978256.1 |
|
|||||||||||||||||||||||||||
