| MWexperimental | 72 | kDa |
| MWexpected | 87 | kDa |
| VPorod | 102 | nm3 |
|
log I(s)
4.89×101
4.89×100
4.89×10-1
4.89×10-2
|
s, nm-1
|
Structure-based engineering of minimal Proline dehydrogenase domains for inhibitor discovery.
Bogner AN, Ji J, Tanner JJ, Protein Eng Des Sel (2022) Europe PMCSASDQ58 – Minimal proline dehydrogenase domain of proline utilization A (SmPutADeltaAlpha2) 2.3 mg/mL
Minimal proline dehydrogenase domain of proline utilization A (design #2)|
|
|

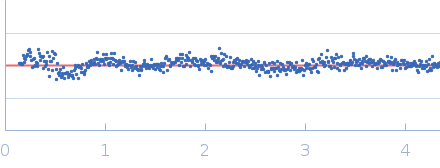

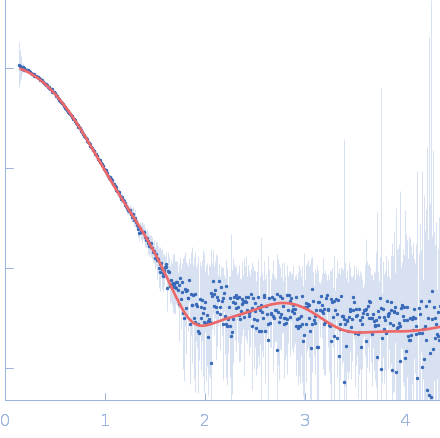

Fits and models
|
|
|
Synchrotron SAXS data from solutions of minimal proline dehydrogenase domain of proline utilization A (SmPutADeltaAlpha2) in 25 mM HEPES pH 7.6, 150 mM NaCl, and 1mM TCEP, were collected on the 12.3.1 (SIBYLS) beam line at the Advanced Light Source (ALS; Berkeley, CA, USA) using a Pilatus3 X 2M detector at a sample-detector distance of 2 m and at a wavelength of λ = 0.1234 nm (I(s) vs s, where s = 4πsinθ/λ, and 2θ is the scattering angle). One solute concentration of 2.30 mg/ml was measured at 20°C. 30 successive 0.330 second frames were collected. The data were normalized to the intensity of the transmitted beam and radially averaged; the scattering of the solvent-blank was subtracted.
|
|
|||||||||||||||||||||||||||
