Structural basis of DNA binding by YdaT, a functional equivalent of the CII repressor in the cryptic prophage CP-933P from Escherichia coli O157:H7

Prolič-Kalinšek M, Volkov A, Hadži S, Van Dyck J, Bervoets I, Charlier D, Loris R, Acta Crystallographica Section D Structural Biology 79(3):245-258 (2023) DOI

SASDQC9 – Mutant YdaT_toxin domain-containing protein (L111N/F118R)

YdaT_toxin domain-containing protein (mutant: L111N, F118R)
MWexperimental 19 kDa
MWexpected 18 kDa
VPorod 32 nm3
log I(s) 2.09×10-2 2.09×10-3 2.09×10-4 2.09×10-5
YdaT_toxin domain-containing protein (mutant: L111N, F118R) small angle scattering data  s, nm-1

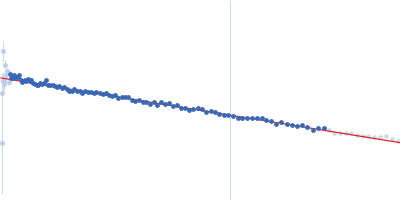

ln I(s)
YdaT_toxin domain-containing protein (mutant: L111N, F118R) Guinier plot ln 2.10×10-2 Rg: 2.4 nm 0 (2.4 nm)-2 s2

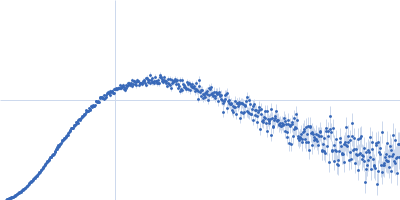

(sRg)2I(s)/I(0)
YdaT_toxin domain-containing protein (mutant: L111N, F118R) Kratky plot 1.104 0 3 sRg

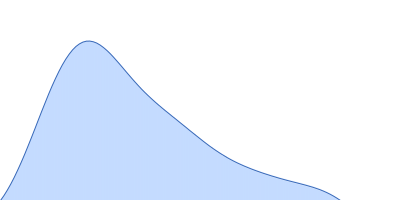

p(r)
YdaT_toxin domain-containing protein (mutant: L111N, F118R) pair distance distribution function Rg: 2.5 nm 0 Dmax: 8.2 nm

Data validation

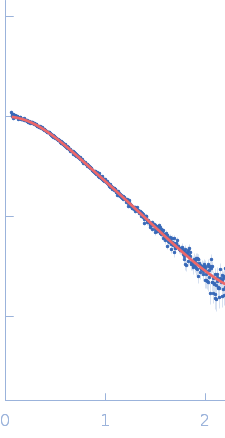

Fits and models


log I(s)
 s, nm-1
YdaT_toxin domain-containing protein (mutant: L111N, F118R) OTHER [STATIC IMAGE] model

Synchrotron SAXS data from solutions of Mutant YdaT_toxin domain-containing protein (L111N/F118R) in 20 mM Tris-HCl, 200 mM NaCl, pH 8 were collected on the SWING beam line at SOLEIL (Saint-Aubin, France) using a Eiger 4M detector at a sample-detector distance of 2.2 m and at a wavelength of λ = 0.103 nm (I(s) vs s, where s = 4πsinθ/λ, and 2θ is the scattering angle). In-line size-exclusion chromatography (SEC) SAS was employed. The SEC parameters were as follows: A 45.00 μl sample at 10 mg/ml was injected at a 0.30 ml/min flow rate onto a Shodex KW402.5-4F column at 15°C. 630 successive 0.990 second frames were collected through the SEC elution. The data were normalized to the intensity of the transmitted beam and radially averaged; the scattering of the solvent-blank was subtracted.

The atomic coordinate file of the full ensemble is made available in the full entry zip archive.

YdaT_toxin domain-containing protein (mutant: L111N, F118R) (YdaT L111N/F118R)
Mol. type   Protein
Organism   Escherichia coli O157:H7
Olig. state   Monomer
Mon. MW   18.5 kDa

UniProt   A0A6M7H0F8 (2-141)
Sequence   FASTA
