| MWexperimental | 74 | kDa |
| MWexpected | 91 | kDa |
| VPorod | 127 | nm3 |
|
log I(s)
7.08×103
7.08×102
7.08×101
7.08×100
|
s, nm-1
|
Structural and functional investigation of tRNA guanine transglycosylase
Katharina Sievers, University of Göttingen Dissertation - (2023) URLSASDRB8 – Human tRNA guanine transglycosylase heterodimer
Queuine tRNA-ribosyltransferase catalytic subunit 1Queuine tRNA-ribosyltransferase accessory subunit 2
|
|
|

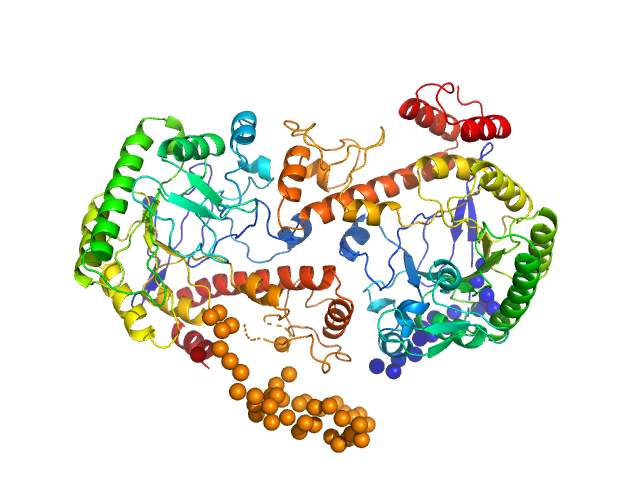

Fits and models
|
Rg, nm
|
|
Rg, nm
|
|
Synchrotron SAXS data from solutions of tRNA guanine transglycosylase in 20 mM HEPES, 100 mM NaCl, 3% (w/v) glycerol, pH 7.5 were collected on the EMBL P12 beam line at PETRA III (DESY, Hamburg, Germany) using a Pilatus 6M detector at a sample-detector distance of 3 m and at a wavelength of λ = 0.124 nm (I(s) vs s, where s = 4πsinθ/λ, and 2θ is the scattering angle). In-line size-exclusion chromatography (SEC) SAS was employed. The SEC parameters were as follows: A 75.00 μl sample at 10 mg/ml was injected at a 0.50 ml/min flow rate onto a GE Superdex 200 Increase 10/300 column at 20°C. 3600 successive 1 second frames were collected through the SEC elution. The data were normalized to the intensity of the transmitted beam and radially averaged; the scattering of the solvent-blank was subtracted.
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||
