LIKE EARLY STARVATION 1 and EARLY STARVATION 1 promote and stabilize amylopectin phase transition in starch biosynthesis.

Liu C, Pfister B, Osman R, Ritter M, Heutinck A, Sharma M, Eicke S, Fischer-Stettler M, Seung D, Bompard C, Abt MR, Zeeman SC, Sci Adv 9(21):eadg7448 (2023) Europe PMC

SASDRS5 – Early Starvation 1 from Arabidopsis thaliana

Inactive purple acid phosphatase-like protein
MWexperimental 40 kDa
MWexpected 40 kDa
VPorod 83 nm3
log I(s) 3.14×10-2 3.14×10-3 3.14×10-4 3.14×10-5
Inactive purple acid phosphatase-like protein small angle scattering data  s, nm-1
ln I(s)

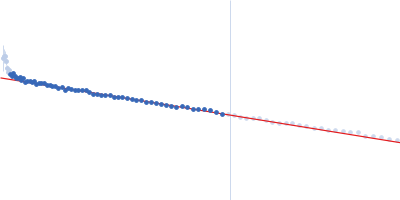

Inactive purple acid phosphatase-like protein Guinier plot ln 3.14×10-2 Rg: 3.2 nm 0 (3.2 nm)-2 s2
(sRg)2I(s)/I(0)
Inactive purple acid phosphatase-like protein Kratky plot 1.104 0 √3 sRg
p(r)

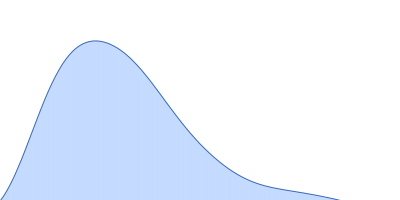

Inactive purple acid phosphatase-like protein pair distance distribution function Rg: 3.2 nm 0 Dmax: 11.5 nm

Data validation

There are no models related to this curve.

Synchrotron SAXS data from solutions of early starvation 1 from Arabidopsis thaliana in 50 mM Tris, 150 mM NaCl, 10% glycerol, 2 mM DTT, pH 8 were collected on the SWING beam line at SOLEIL (Saint-Aubin, France) using a AVIEX PCCD170170 detector at a sample-detector distance of 1.5 m and at a wavelength of λ = 0.1033 nm (I(s) vs s, where s = 4πsinθ/λ, and 2θ is the scattering angle). In-line size-exclusion chromatography (SEC) SAS was employed. The SEC parameters were as follows: A 50.00 μl sample at 4 mg/ml was injected at a 0.20 ml/min flow rate onto a Agilent Bio SEC-3, 150 Å column at 15°C. 254 successive 0.990 second frames were collected. The data were normalized to the intensity of the transmitted beam and radially averaged; the scattering of the solvent-blank was subtracted.

Inactive purple acid phosphatase-like protein (ESV1)
Mol. type   Protein
Organism   Arabidopsis thaliana
Olig. state   Monomer
Mon. MW   39.9 kDa

UniProt   F4I9G2 (96-426)
Sequence   FASTA
