| MWexperimental | 137 | kDa |
| MWexpected | 139 | kDa |
|

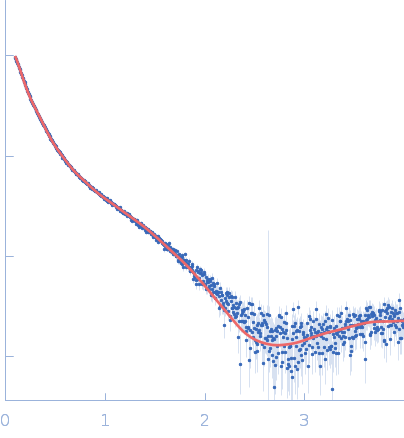

log I(s)
5.99×10-2
5.99×10-3
5.99×10-4
5.99×10-5
|
s, nm-1
|
Evolutionary conservation of the structure and function of meiotic Rec114-Mei4 and Mer2 complexes.
Daccache D, De Jonge E, Liloku P, Mechleb K, Haddad M, Corthaut S, Sterckx YG, Volkov AN, Claeys Bouuaert C, Genes Dev 37(11-12):535-553 (2023) Europe PMCSASDSP2 – Saccharomyces cerevisiae Mer2 coiled-coiled with N-terminal SUMO-tag
Recombination protein 107|
|
|

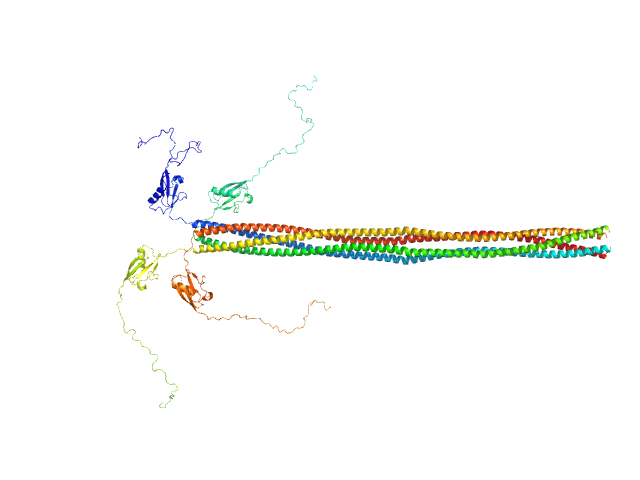

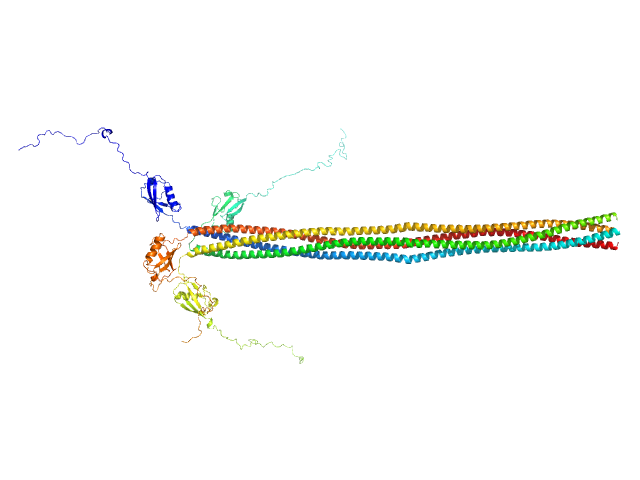

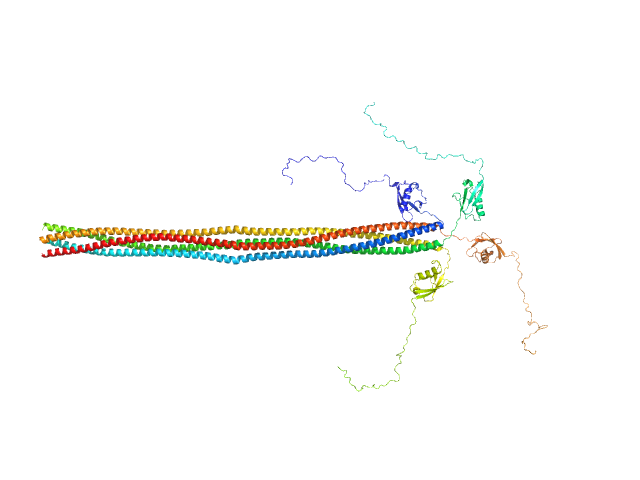

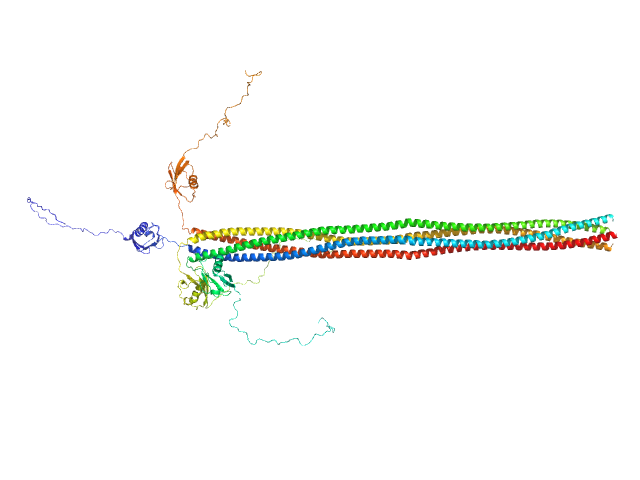

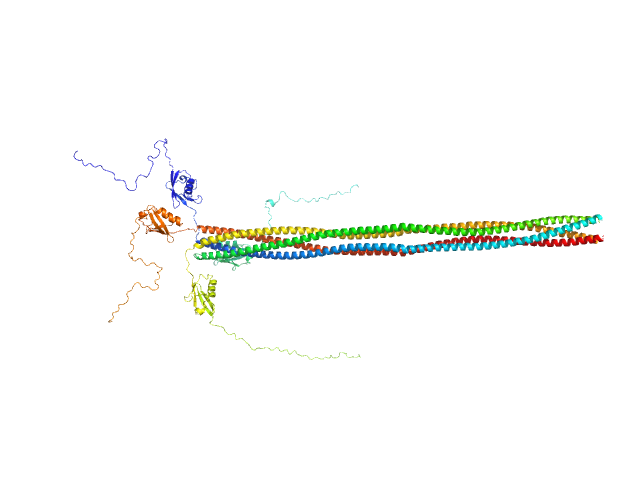

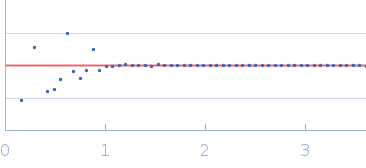

Fits and models
|
|
|
|
Synchrotron SAXS
data from solutions of
Saccharomyces cerevisiae Mer2 coiled-coiled with N-terminal SUMO-tag
in
25 mM HEPES-NaOH, 500 mM NaCl, 5 mM EDTA, 5% glycerol, 1 mM DTT, pH 7.5
were collected
on the
SWING beam line
at the SOLEIL storage ring
(Saint-Aubin, France)
using a Eiger 4M detector
at a sample-detector distance of 2 m and
at a wavelength of λ = 0.099 nm
(I(s) vs s, where s = 4πsinθ/λ, and 2θ is the scattering angle).
In-line size-exclusion chromatography (SEC) SAS was employed. The SEC parameters were as follows: A 90.00 μl sample
at 10.5 mg/ml was injected at a 0.20 ml/min flow rate
onto a Shodex KW404-4F column
at 15°C.
960 successive
0.990 second frames were collected.
The data were normalized to the intensity of the transmitted beam and radially averaged; the scattering of the solvent-blank was subtracted.
|
|
|||||||||||||||||||||||||||
