| MWI(0) | 39 | kDa |
| MWexpected | 44 | kDa |
| VPorod | 62 | nm3 |
|
log I(s)
6.28×10-2
6.28×10-3
6.28×10-4
6.28×10-5
|
s, nm-1
|
Structural basis for IL-33 recognition and its antagonism by the helminth effector protein HpARI2.
Jamwal A, Colomb F, McSorley HJ, Higgins MK, Nat Commun 15(1):5226 (2024) Europe PMCSASDUY6 – Alarmin release inhibitor (HpARI2), full length, bound to Interleukin-33
Alarmin release inhibitor (Δ1-62)Interleukin-33 (L179V)
|
|
|

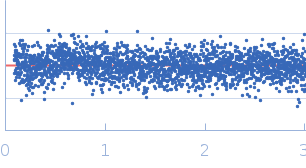

Fits and models
|
|
|
|
|
Synchrotron SAXS data from solutions of alarmin release inhibitor bound to Interleukin-33 in 137 mM NaCl, 2.7 mM KCl, 10 mM phosphate buffer, 5% glycerol, pH 7.2 were collected on the B21 beam line at the Diamond Light Source (Didcot, UK) using a Eiger 4M detector at a sample-detector distance of 3.7 m and at a wavelength of λ = 0.09464 nm (I(s) vs s, where s = 4πsinθ/λ, and 2θ is the scattering angle). One solute concentration of 8.00 mg/ml was measured at 15°C. 600 successive 3 second frames were collected. The data were normalized to the intensity of the transmitted beam and radially averaged; the scattering of the solvent-blank was subtracted.
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||
