Early events in G-quadruplex folding captured by time-resolved small-angle X-ray scattering.

Monsen RC, Sabo TM, Gray R, Hopkins JB, Chaires JB, Nucleic Acids Res 53(3) (2025) Europe PMC

SASDW43 – Telomere DNA G-quadruplex (2GKU) at neutral pH

Telomere DNA G-quadruplex Hybrid-1 form
MWexperimental 7 kDa
MWexpected 8 kDa
VPorod 8 nm3
log I(s) 1.12×10-2 1.12×10-3 1.12×10-4 1.12×10-5
Telomere DNA G-quadruplex Hybrid-1 form small angle scattering data  s, nm-1
ln I(s)

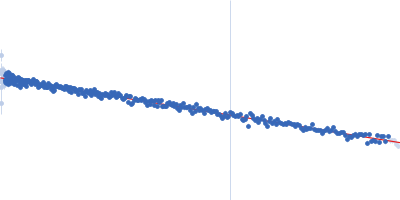

Telomere DNA G-quadruplex Hybrid-1 form Guinier plot ln 1.12×10-2 Rg: 1.2 nm 0 (1.2 nm)-2 s2
(sRg)2I(s)/I(0)
Telomere DNA G-quadruplex Hybrid-1 form Kratky plot 1.104 0 3 sRg
p(r)
Telomere DNA G-quadruplex Hybrid-1 form pair distance distribution function Rg: 1.2 nm 0 Dmax: 3.8 nm

Data validation


There are no models related to this curve.

Synchrotron SAXS data from solutions of Telomere DNA G-quadruplex (2GKU) in 6 mM Na2HPO4, 2 mM NaH2PO4, 1 mM Na2EDTA, 185 mM KCl, pH 7.2 were collected on the BioCAT 18ID beam line at the Advanced Photon Source (APS), Argonne National Laboratory (Lemont, IL, USA) using a Pilatus3 X 1M detector at a sample-detector distance of 3.7 m and at a wavelength of λ = 0.1033 nm (I(s) vs s, where s = 4πsinθ/λ, and 2θ is the scattering angle). In-line size-exclusion chromatography (SEC) SAS was employed. The SEC parameters were as follows: A 400.00 μl sample at 5 mg/ml was injected at a 0.60 ml/min flow rate onto a GE Superdex 200 Increase 10/300 column at 22°C. The data were normalized to the intensity of the transmitted beam and radially averaged; the scattering of the solvent-blank was subtracted.

X-ray Exposure time = UNKNOWN. Number of frames = UNKNOWN

Telomere DNA G-quadruplex Hybrid-1 form (2GKU)
Mol. type   DNA
Organism   synthetic construct
Olig. state   Monomer
Mon. MW   7.7 kDa
Sequence   FASTA
